Home Elevator

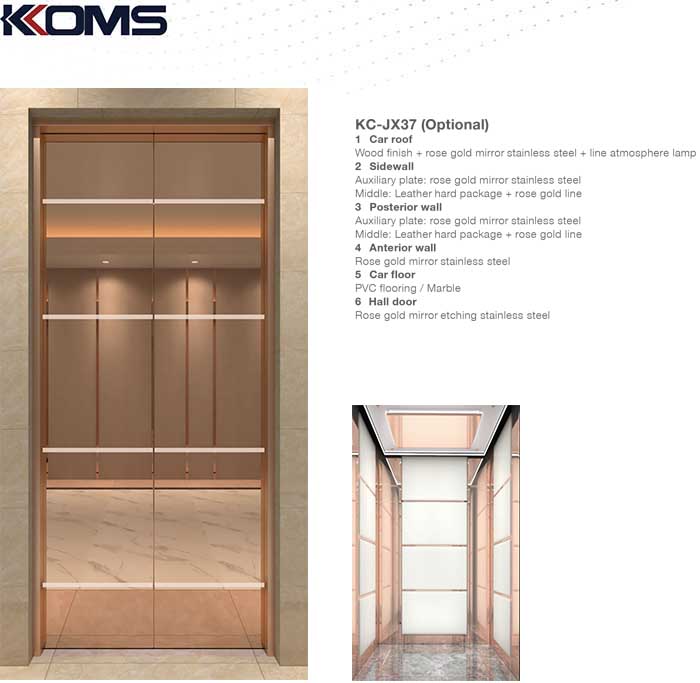

KC-JX37 (Optional)
1. Car roof
Wood finish + rose gold mirror stainless steel + line atmosphere lamp
2. Sidewall
Auxiliary plate: rose gold mirror stainless steel
Middle: Leather hard package + rose gold line
3. Posterior wall
Auxiliary plate: rose gold mirror stainless steel
Middle: Leather hard package + rose gold line
4. Anterior wall
Rose gold mirror stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Rose gold mirror etching stainless steel

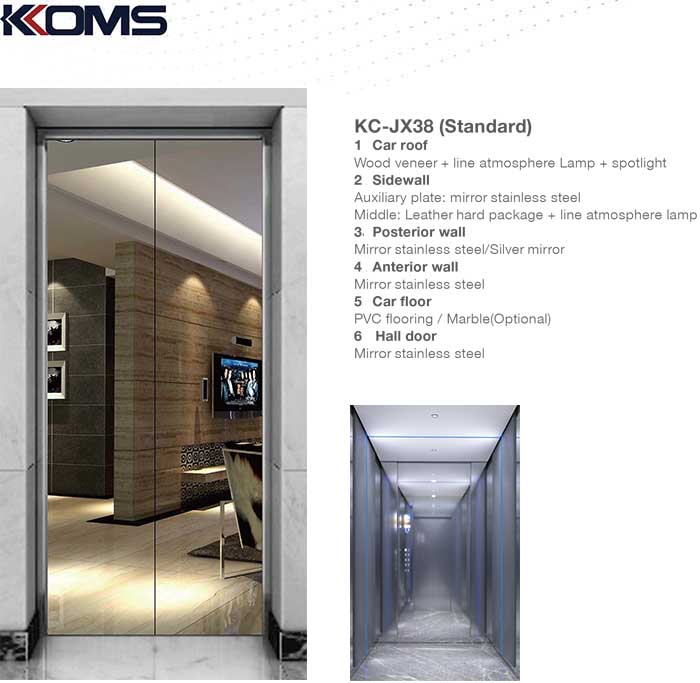

KC-JX38 (Standard)
1. Car roof
Wood veneer + line atmosphere Lamp + spotlight
2. Sidewall
Auxiliary plate: mirror stainless steel
Middle: Leather hard package + line atmosphere lamp
3. Posterior wall
Mirror stainless steel/Silver mirror
4. Anterior wall
Mirror stainless steel
5. Car floor
PVC flooring / Marble(Optional)
6. Hall door
Mirror stainless steel

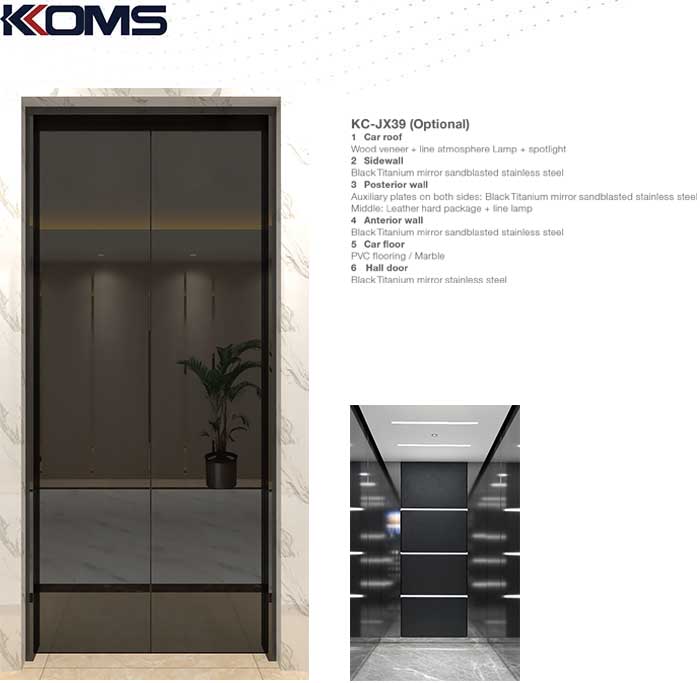

KC-JX39 (Optional)
1. Car roof
Wood veneer + line atmosphere Lamp + spotlight
2. Sidewall
Black Titanium mirror sandblasted stainless steel
3. Posterior wall
Auxiliary plates on both sides: Black Titanium mirror sandblasted stainless steel
Middle: Leather hard package + line lamp
4. Anterior wall
Black Titanium mirror sandblasted stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Black Titanium mirror stainless steel

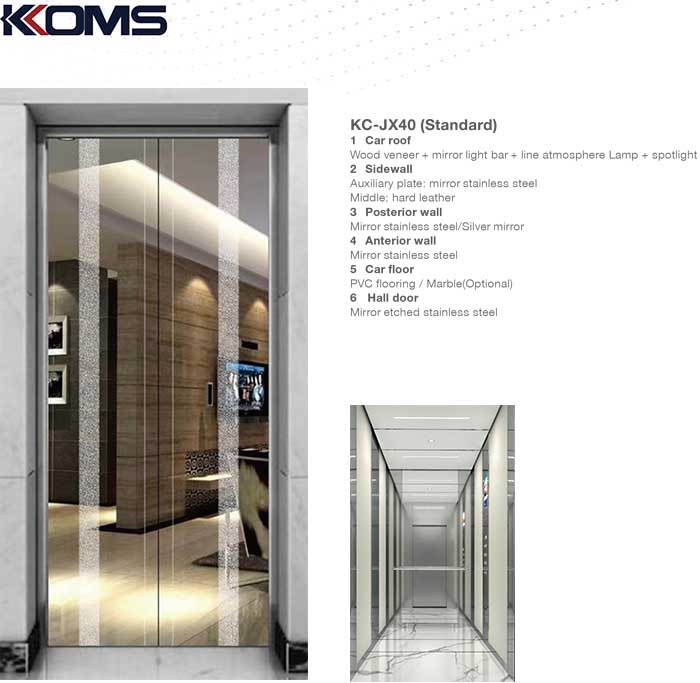

KC-JX40 (Standard)
1. Car roof
Wood veneer + mirror light bar + line atmosphere Lamp + spotlight
2. Sidewall
Auxiliary plate: mirror stainless steel
Middle: hard leather
3. Posterior wall
Mirror stainless steel/Silver mirror
4. Anterior wall
Mirror stainless steel
5. Car floor
PVC flooring / Marble(Optional)
6. Hall door
Mirror etched stainless steel

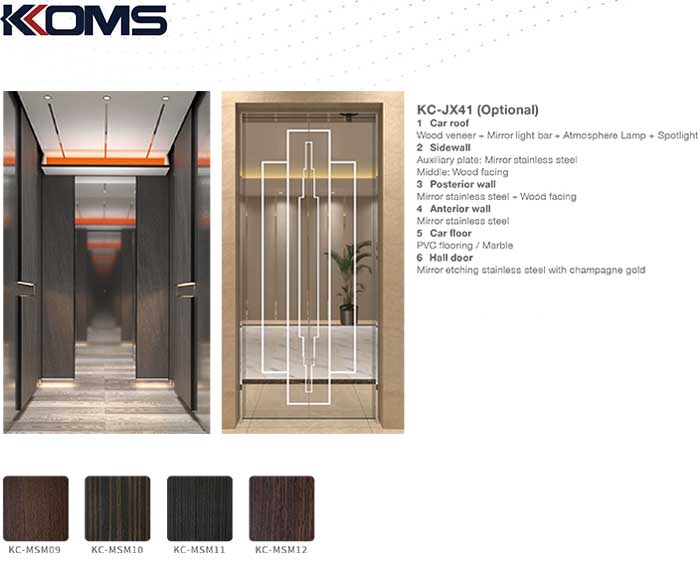

KC-JX41 (Optional)
1. Car roof
Wood veneer + Mirror light bar + Atmosphere Lamp + Spotlight
2. Sidewall
Auxiliary plate: Mirror stainless steel
Middle: Wood facing
3. Posterior wall
Mirror stainless steel + Wood facing
4. Anterior wall
Mirror stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Mirror etching stainless steel with champagne gold

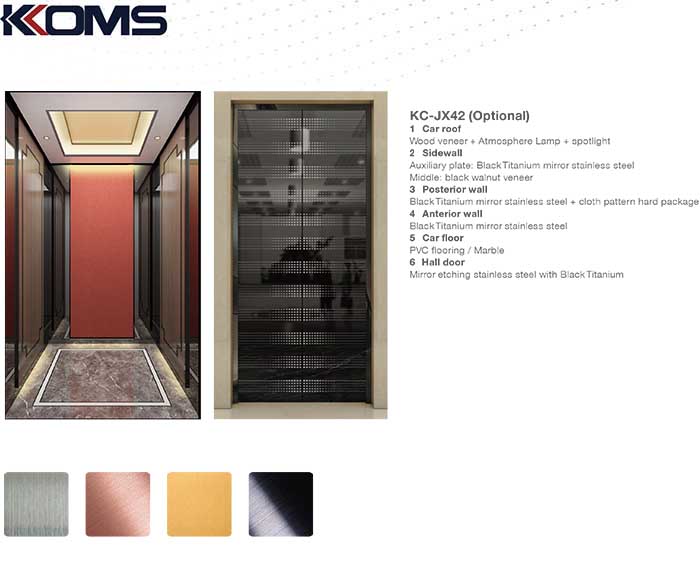

KC-JX42 (Optional)
1. Car roof
Wood veneer + Atmosphere Lamp + spotlight
2. Sidewall
Auxiliary plate: Black Titanium mirror stainless steel
Middle: black walnut veneer
3. Posterior wall
Black Titanium mirror stainless steel + cloth pattern hard package
4. Anterior wall
Black Titanium mirror stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Mirror etching stainless steel with Black Titanium

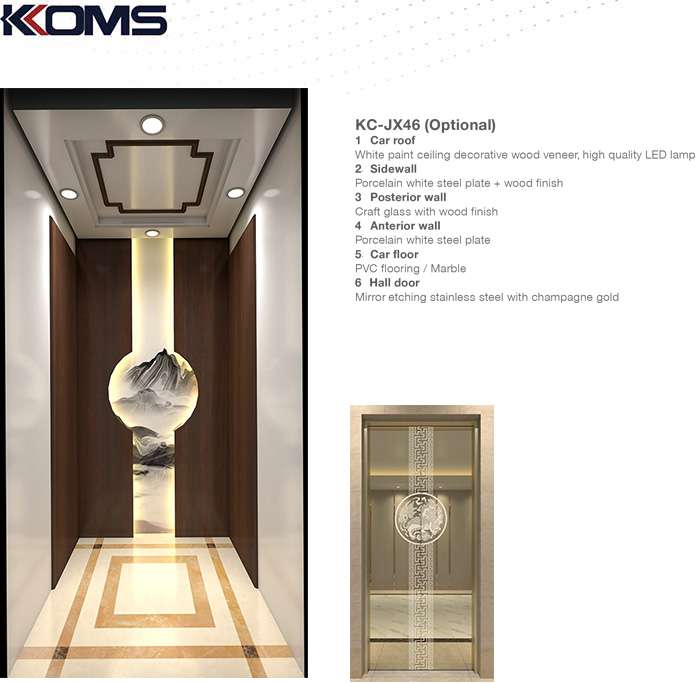

KC-JX46 (Optional)
1. Car roof
White paint ceiling decorative wood veneer, high quality LED lamp
2. Sidewall
Porcelain white steel plate + wood finish
3. Posterior wall
Craft glass with wood finish
4. Anterior wall
Porcelain white steel plate
5. Car floor
PVC flooring / Marble
6. Hall door
Mirror etching stainless steel with champagne gold

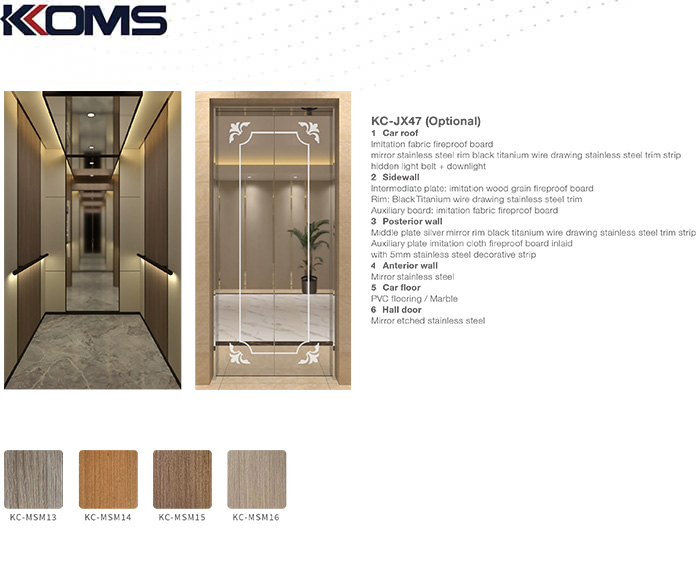

KC-JX47 (Optional)
1.Car roof
Imitation fabric fireproof board
mirror stainless steel rim black titanium wire drawing stainless steel trim strip
hidden light belt + downlight
2. Sidewall
Intermediate plate: imitation wood grain fireproof board
Rim: Black Titanium wire drawing stainless steel trim
Auxiliary board: imitation fabric fireproof board
3. Posterior wall
Middle plate silver mirror rim black titanium wire drawing stainless steel trim strip
Auxiliary plate imitation cloth fireproof board inlaid
with 5mm stainless steel decorative strip
4. Anterior wall
Mirror stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Mirror etched stainless steel

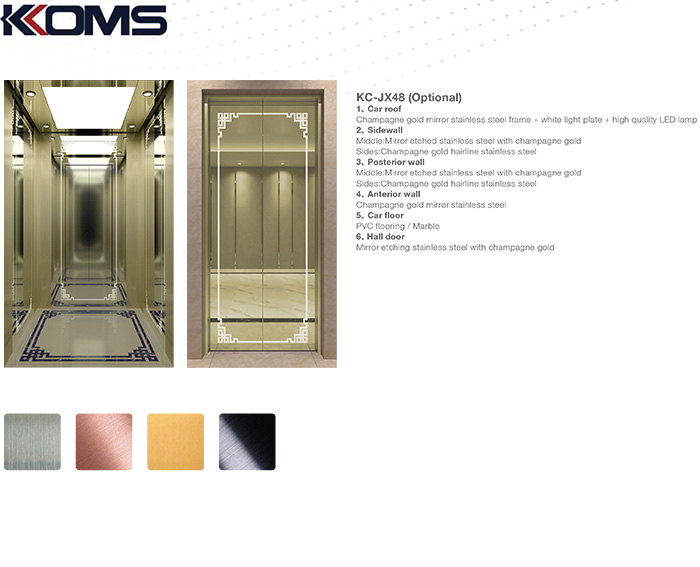

KC-JX48 (Optional)
1. Car roof
Champagne gold mirror stainless steel frame + white light plate + high quality LED lamp
2. Sidewall
Middle:Mirror etched stainless steel with champagne gold
Sides:Champagne gold hairline stainless steel
3. Posterior wall
Middle:Mirror etched stainless steel with champagne gold
Sides:Champagne gold hairline stainless steel
4. Anterior wall
Champagne gold mirror stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Mirror etching stainless steel with champagne gold

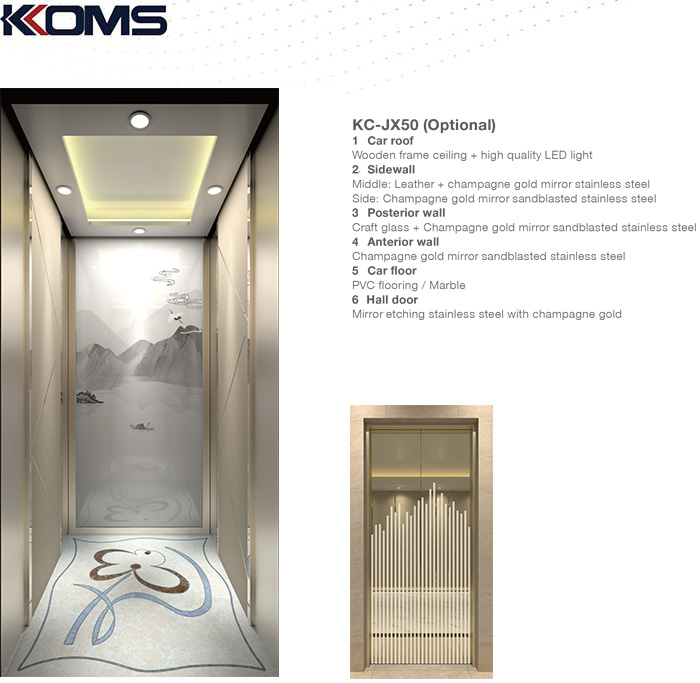

KC-JX50 (Optional)
1. Car roof
Wooden frame ceiling + high quality LED light
2. Sidewall
Middle: Leather + champagne gold mirror stainless steel
Side: Champagne gold mirror sandblasted stainless steel
3. Posterior wall
Craft glass + Champagne gold mirror sandblasted stainless steel
4. Anterior wall
Champagne gold mirror sandblasted stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Mirror etching stainless steel with champagne gold

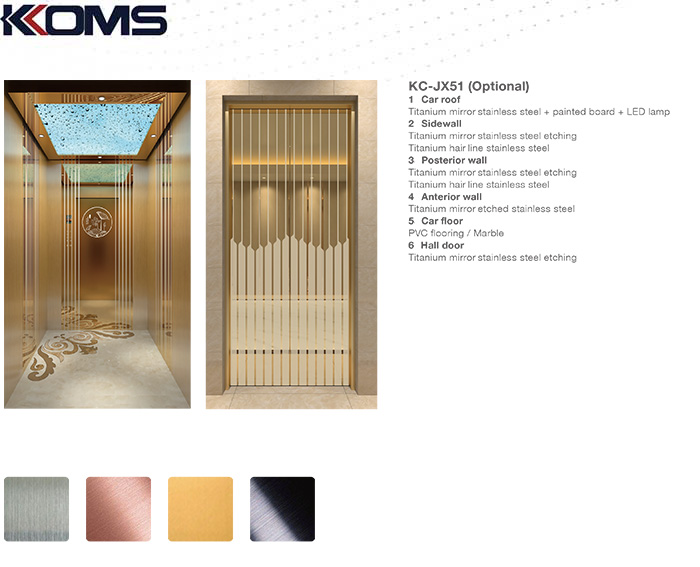

KC-JX51 (Optional)
1. Car roof
Titanium mirror stainless steel + painted board + LED lamp
2. Sidewall
Titanium mirror stainless steel etching
Titanium hair line stainless steel
3. Posterior wall
Titanium mirror stainless steel etching
Titanium hair line stainless steel
4. Anterior wall
Titanium mirror etched stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Titanium mirror stainless steel etching

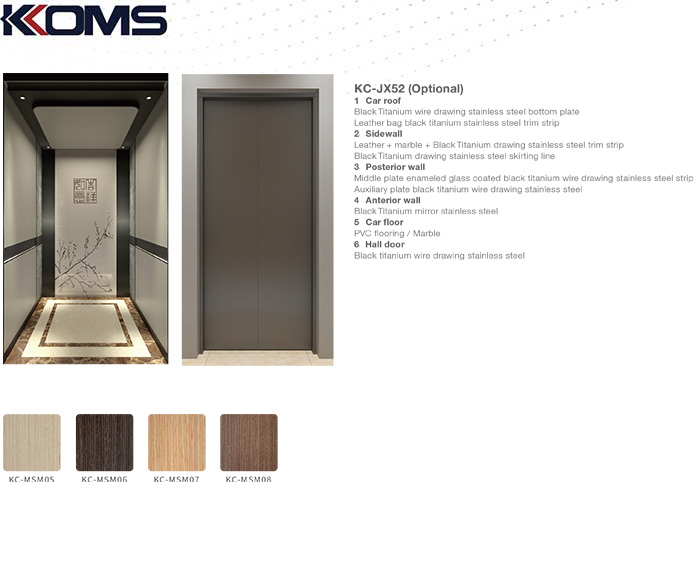

KC-JX52 (Optional)
1. Car roof
Black Titanium wire drawing stainless steel bottom plate
Leather bag black titanium stainless steel trim strip
2. Sidewall
Leather + marble + Black Titanium drawing stainless steel trim strip
Black Titanium drawing stainless steel skirting line
3. Posterior wall
Middle plate enameled glass coated black titanium wire drawing stainless steel strip
Auxiliary plate black titanium wire drawing stainless steel
4. Anterior wall
Black Titanium mirror stainless steel
5. Car floor
PVC flooring / Marble
6. Hall door
Black titanium wire drawing stainless steel

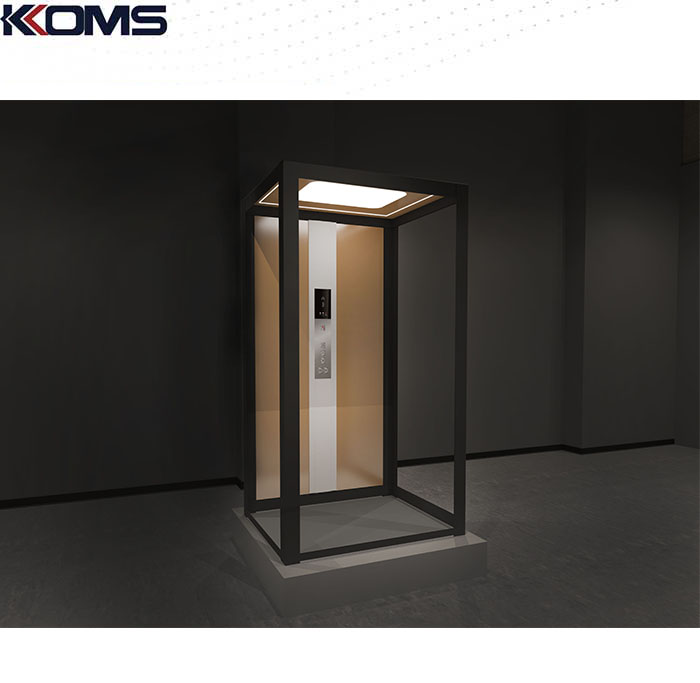

KC-JX53 (Optional)
1. Car roof
Galvanized sheet + LED light
2. Car frame
aluminium alloy
3. Posterior wall
4 + 4 laminated glass + sheet metal car wall
4. Car floor
PVC flooring / Marble

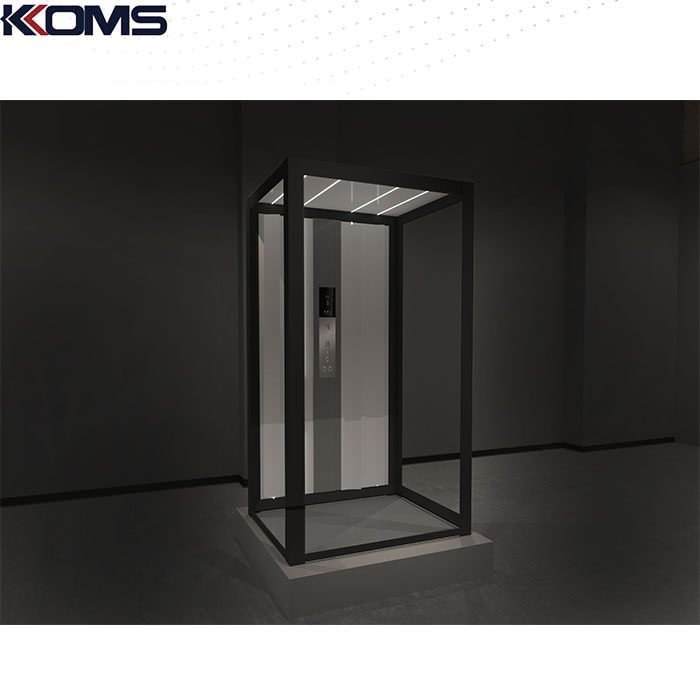

KC-JX54 (Optional)
1. Car roof
Galvanized sheet + LED light
2. Car frame
aluminium alloy
3. Posterior wall
4 + 4 laminated glass + sheet metal car wall
4. Car floor
PVC flooring / Marble

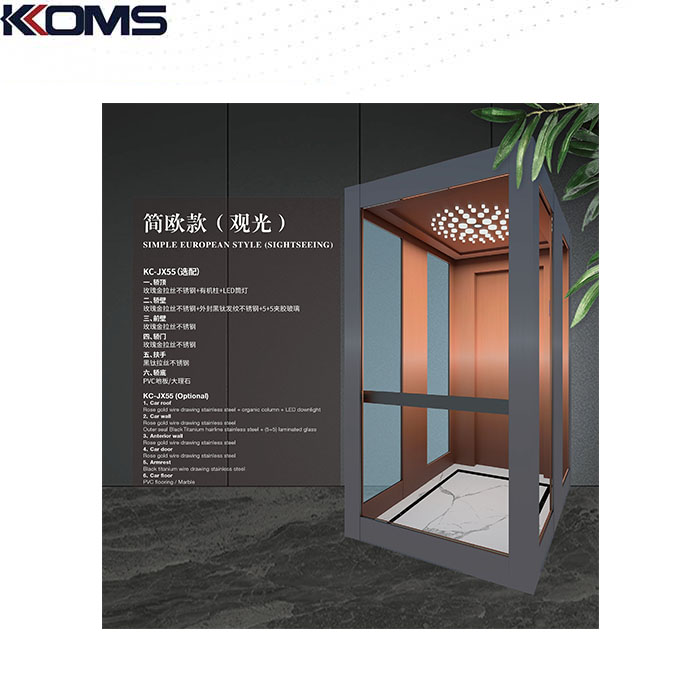

KC-JX55 (Optional)
1. Car roof
Rose gold wire drawing stainless steel + organic column + LED downlight
2. Car wall
Rose gold wire drawing stainless steel
Outer seal Black Titanium hairline stainless steel + (5+5) laminated glass
3. Anterior wall
Rose gold wire drawing stainless steel
4. Car door
Rose gold wire drawing stainless steel
5. Armrest
Black titanium wire drawing stainless steel
6. Car floor
PVC flooring / Marble

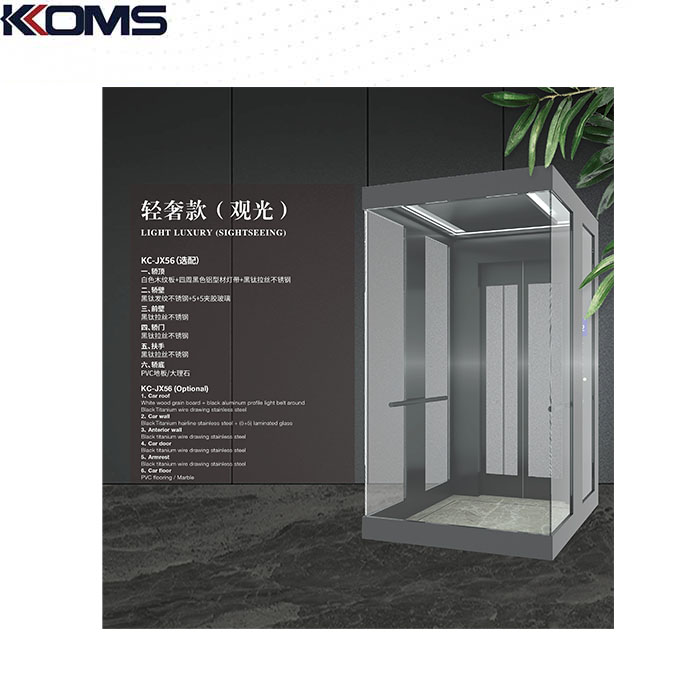

KC-JX56 (Optional)
1. Car roof
White wood grain board + black aluminum profile light belt around
Black Titanium wire drawing stainless steel
2. Car wall
Black Titanium hairline stainless steel + (5+5) laminated glass
3. Anterior wall
Black titanium wire drawing stainless steel
4. Car door
Black titanium wire drawing stainless steel
5. Armrest
Black titanium wire drawing stainless steel
6. Car floor
PVC flooring / Marble

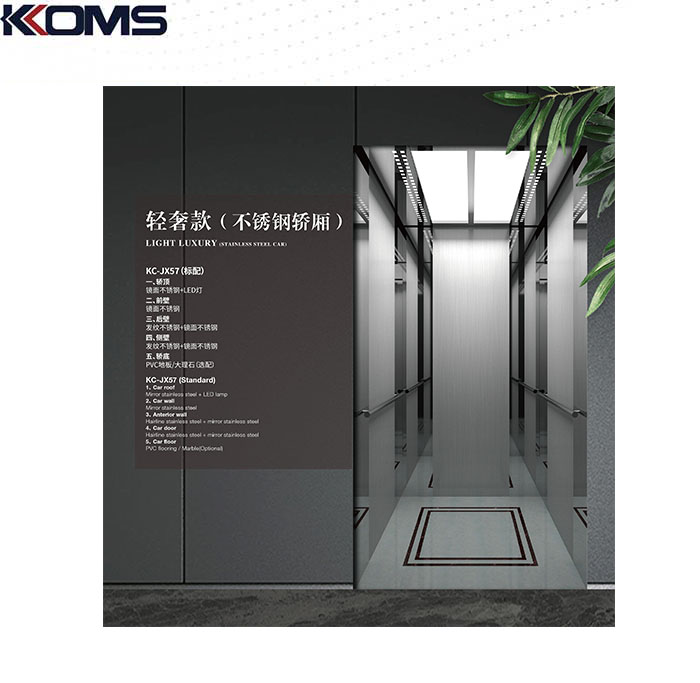

KC-JX57 (Standard)
1. Car roof
Mirror stainless steel + LED lamp
2. Car wall
Mirror stainless steel
3. Anterior wall
Hairline stainless steel + mirror stainless steel
4. Car door
Hairline stainless steel + mirror stainless steel
5. Car floor
PVC flooring / Marble(Optional)

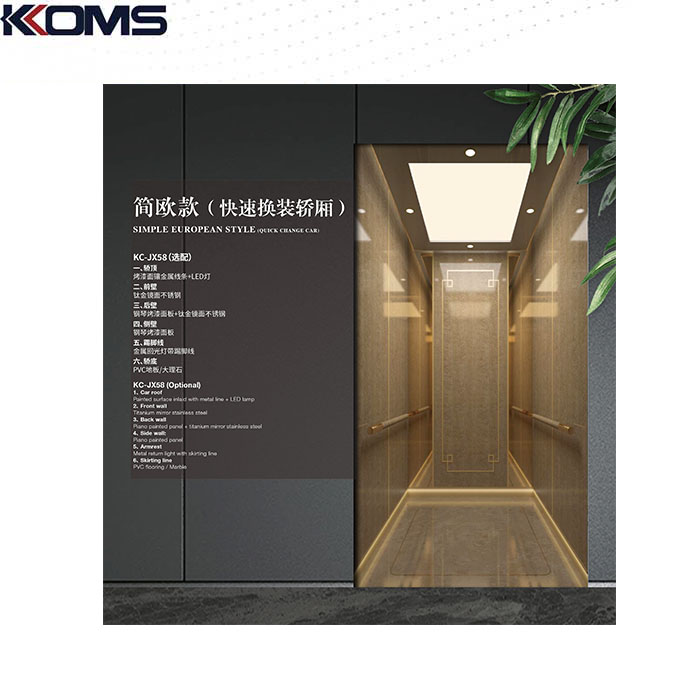

KC-JX58 (Optional)
1. Car roof
Painted surface inlaid with metal line + LED lamp
2. Front wall
Titanium mirror stainless steel
3. Back wall
Piano painted panel + titanium mirror stainless steel
4. Side wall
Piano painted panel
5. Armrest
Metal return light with skirting line
6. Skirting line
PVC flooring / Marble

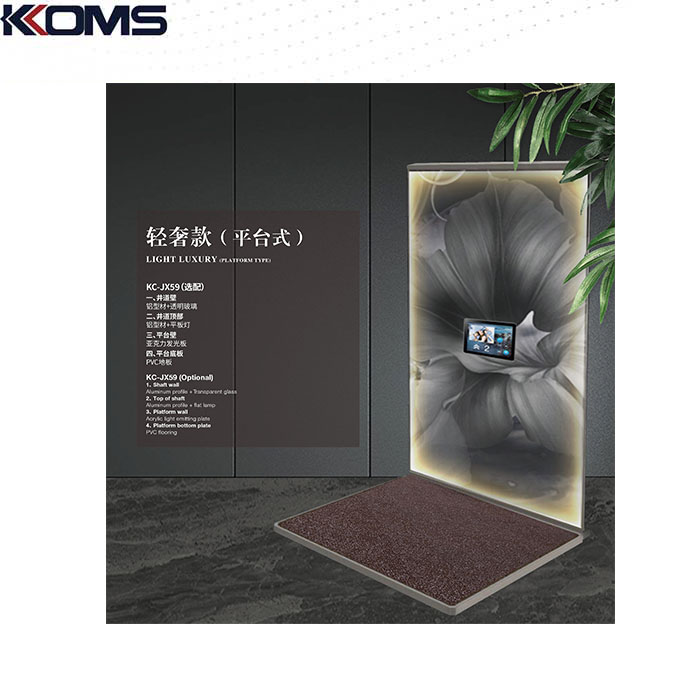

KC-JX59 (Optional)
1. Shaft wall
Aluminum profile + Transparent glass
2. Top of shaft
Aluminum profile + flat lamp
3. Platform wall
Acrylic light emitting plate
4. Platform bottom plate
PVC flooring

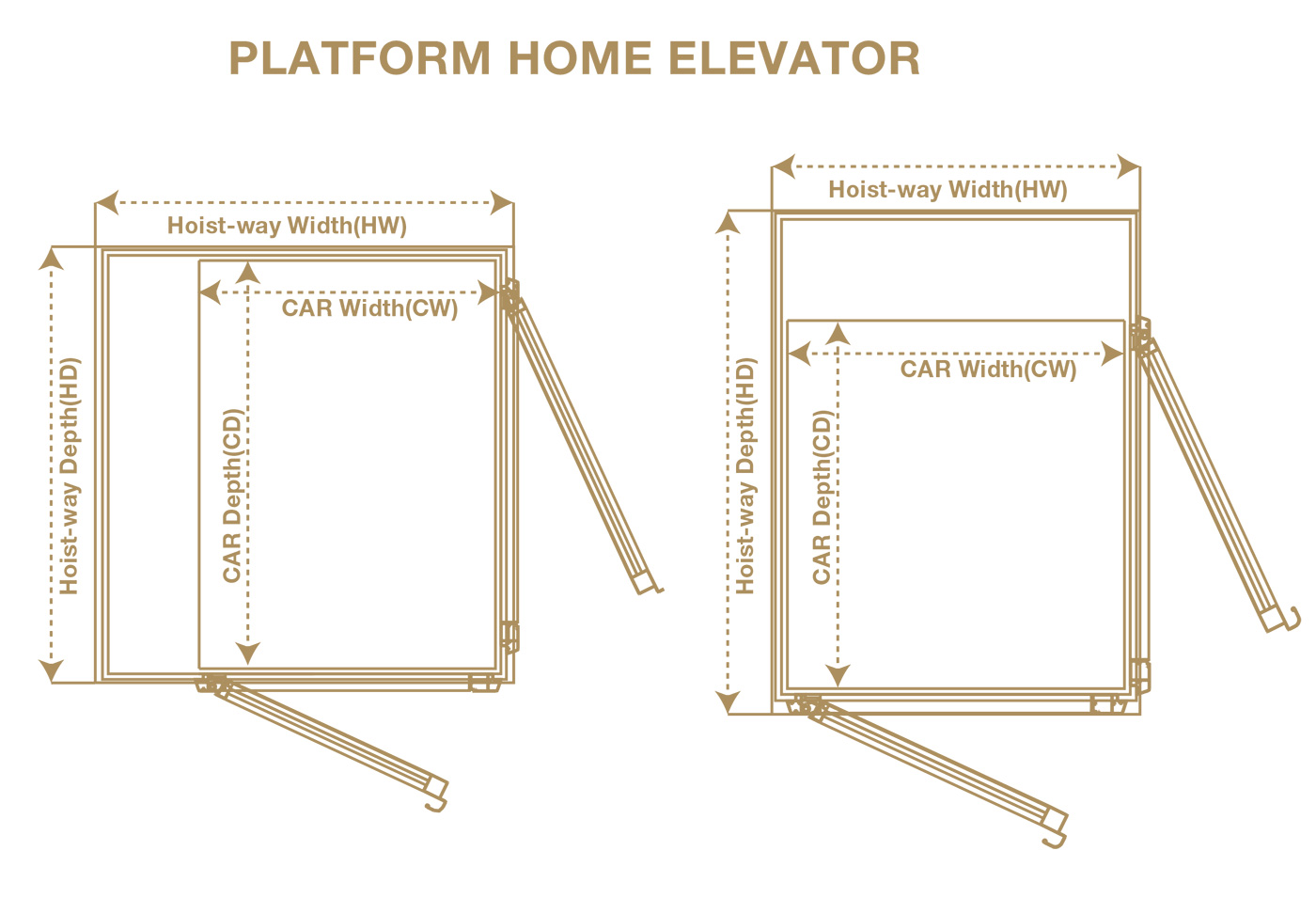

| Load | Speed | Cabin size | Door type | Door size | Hoist way size | Minimum floor spacing | ||||||
| CW | CD | CH | DW | DH | HW | HD | Min S | Min K | Min D | |||
| (kg) | (m/s) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| 260 | 0.4 | 800 | 1100 | 2150 | Side opening | 700 | 2000 | 1350 | 1380 | 500 | 2800 | 2400 |
| 320 | 900 | 1200 | 2150 | 800 | 2000 | 1450 | 1480 | |||||
| 400 | 1000 | 1200 | 2150 | 800 | 2000 | 1550 | 1480 | |||||
| 260 | 800 | 1100 | 2150 | Four panels center opening | 700 | 2000 | 1350 | 1380 | ||||
| 320 | 900 | 1200 | 2150 | 700 | 2000 | 1450 | 1480 | |||||
| 400 | 1000 | 1200 | 2150 | 800 | 2000 | 1550 | 1480 | |||||
| 320 | 900 | 1200 | 2150 | Center opening | 650 | 2000 | 1450 | 1430 | ||||
| 400 | 1000 | 1200 | 2150 | 700 | 2000 | 1550 | 1430 | |||||
| 630 | 0.5 | 1200 | 1300 | 2150 | Side opening | 800 | 2000 | 1900 | 1650 | 700 | 3000 | |
| Four panels center opening | 1900 | 1600 | ||||||||||
| Center opening | 1900 | 1550 | ||||||||||
| Load | Speed | Cabin size | Door type | Door size | Hoist way size | Minimum floor spacing | ||||||
| CW | CD | CH | DW | DH | HW | HD | Min S | Min K | Min D | |||
| （kg） | (m/s) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| 260 | 0.4 | 800 | 1100 | 2150 | Side opening | 700 | 2000 | 1350 | 1380 | 300 | 2800 | 2400 |
| 320 | 900 | 1200 | 2150 | 800 | 2000 | 1450 | 1480 | |||||
| 400 | 1000 | 1200 | 2150 | 800 | 2000 | 1550 | 1480 | |||||
| 260 | 800 | 1100 | 2150 | Four panels center opening | 700 | 2000 | 1350 | 1380 | ||||
| 320 | 900 | 1200 | 2150 | 700 | 2000 | 1450 | 1480 | |||||
| 400 | 1000 | 1200 | 2150 | 800 | 2000 | 1550 | 1480 | |||||
| 320 | 900 | 1200 | 2150 | Center opening | 650 | 2000 | 1450 | 1430 | ||||
| 400 | 1000 | 1200 | 2150 | 700 | 2000 | 1550 | 1430 | |||||

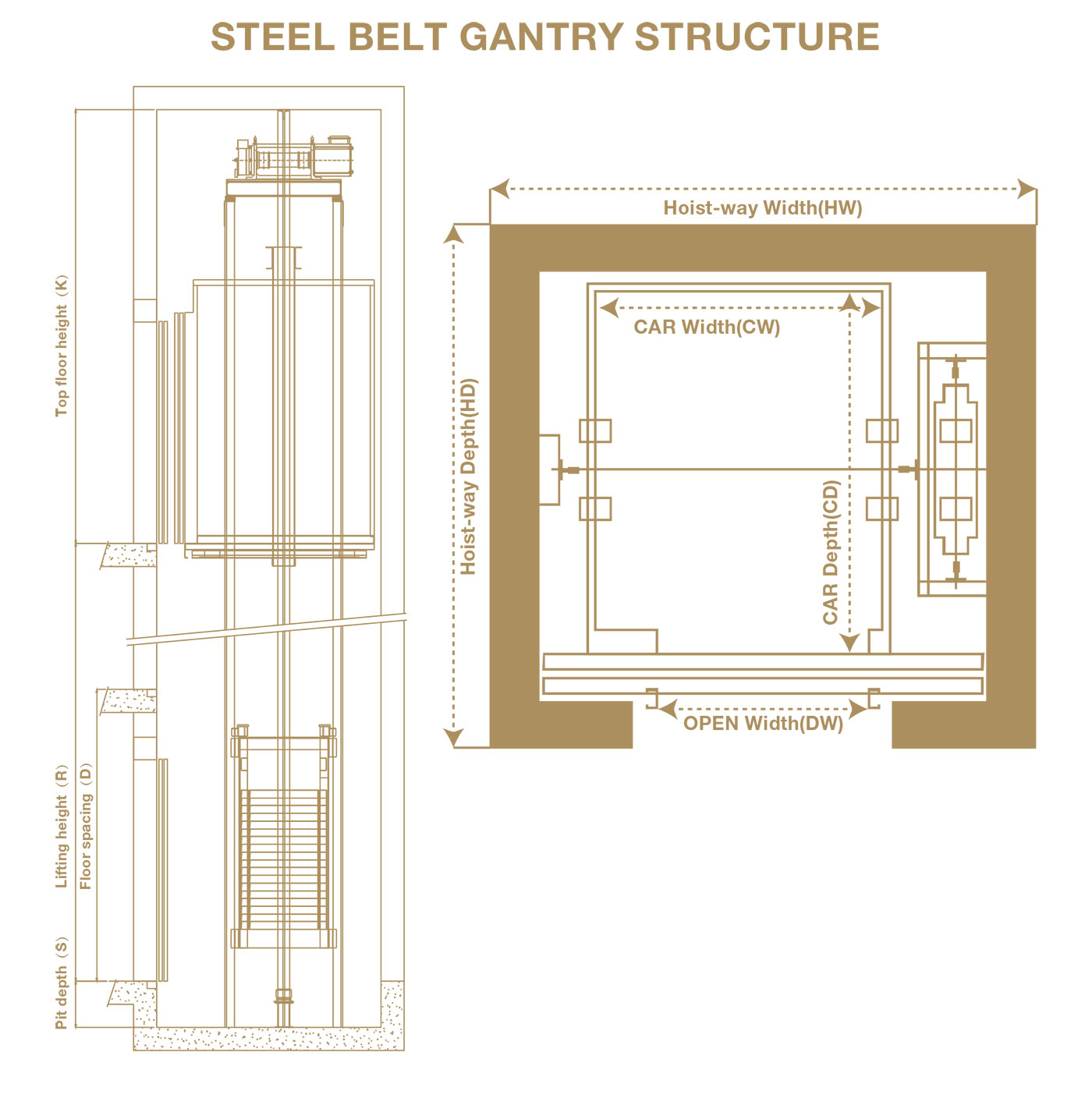

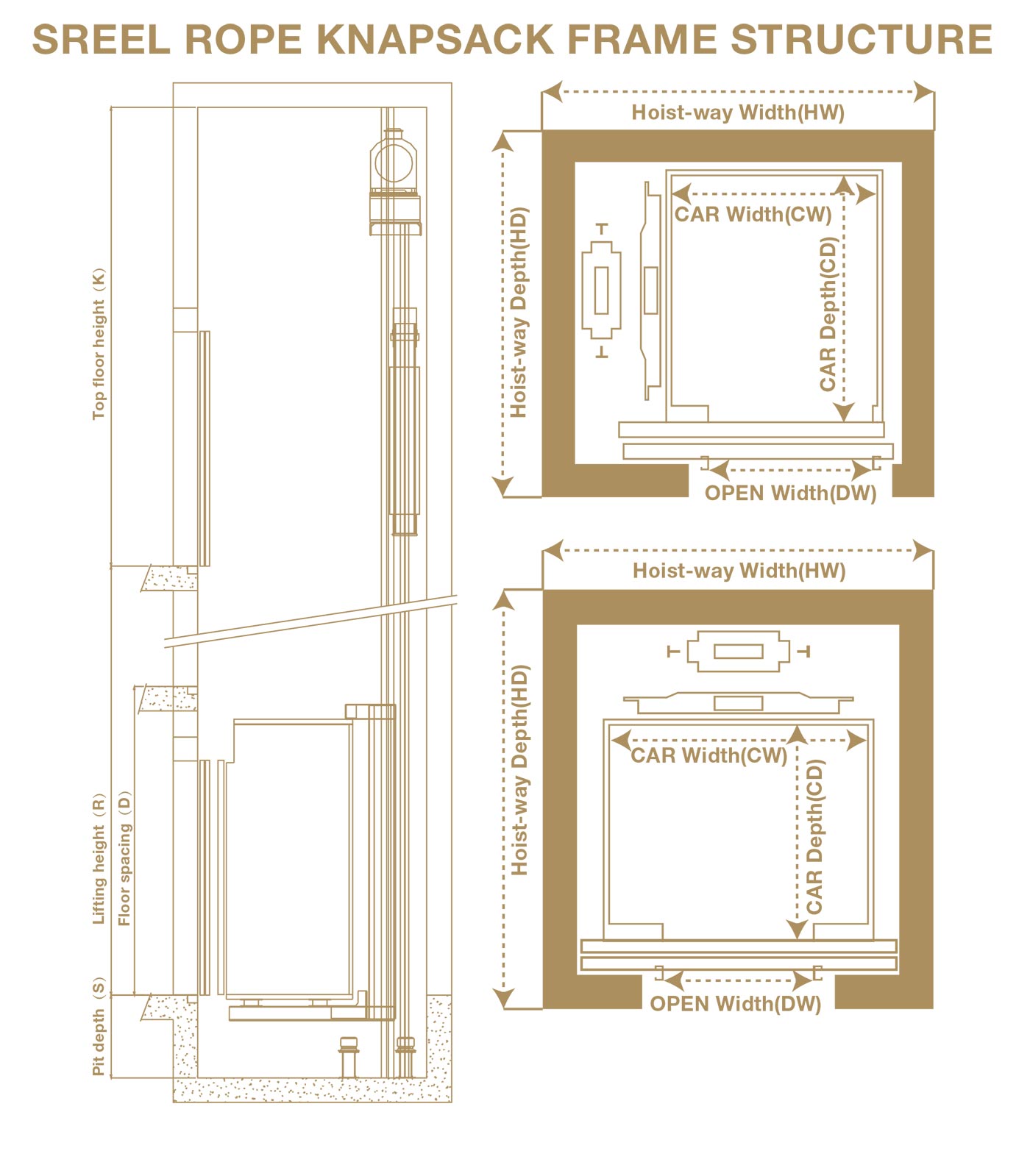

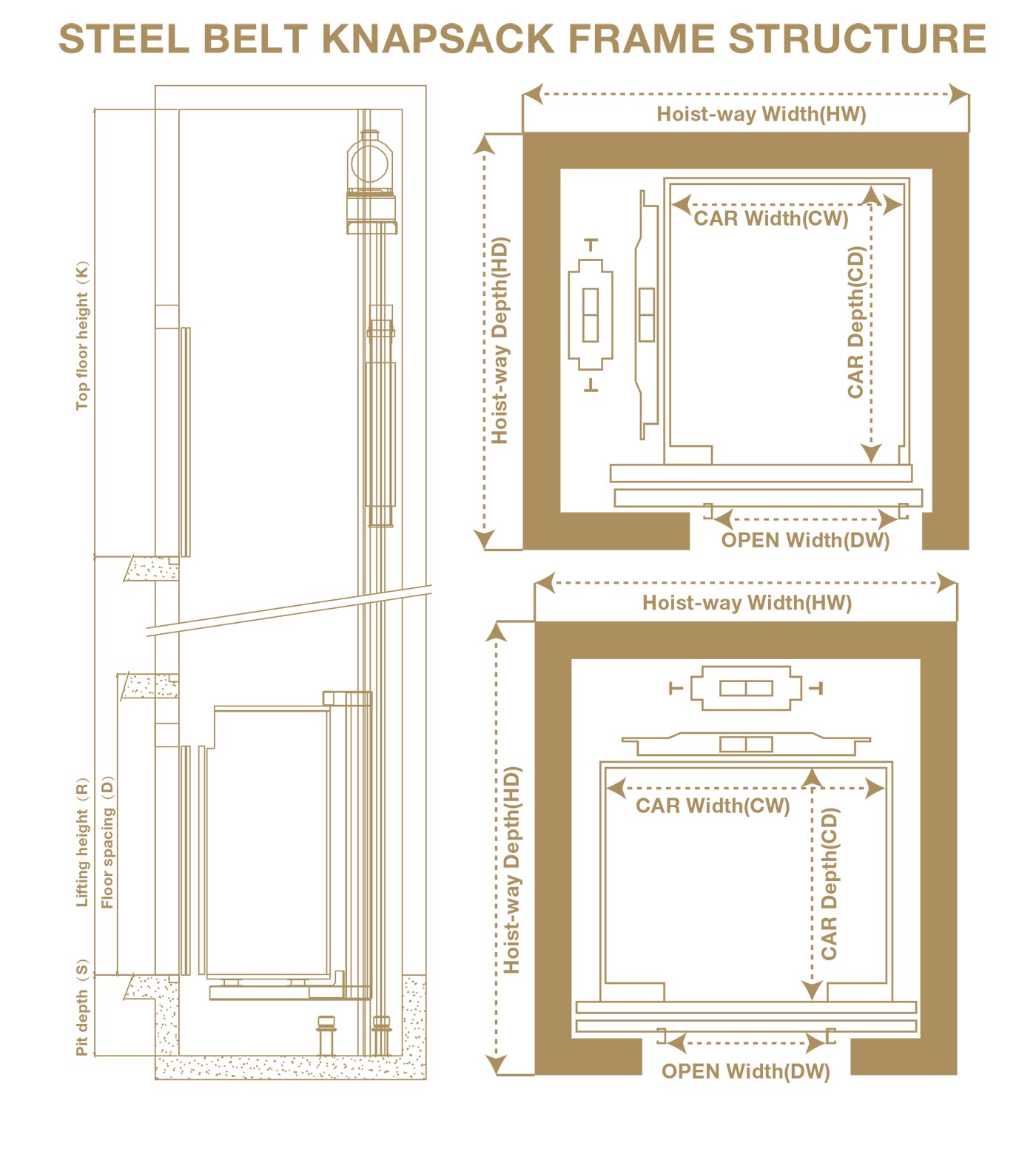

| Knapsack rack Layout |
Cabin size | Door type | Door size | Hoist way size | Minimum floor spacing | ||||||||
| Load | Speed | CW | CD | CH | DW | DH | HW | HD | Min S | Min K | Min D | ||
| （kg） | (m/s) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 260 | 0.4 | Side mounted | 800 | 1100 | 2150 | Side opening | 700 | 2000 | 1400 | 1380 | 150 | 2800 | 2400 |
| 320 | 900 | 1200 | 2150 | 800 | 2000 | 1500 | 1480 | ||||||
| 400 | 1000 | 1200 | 2150 | 800 | 2000 | 1600 | 1480 | ||||||
| 260 | Postposition | 1100 | 800 | 2150 | Four panels center opening | 700 | 2000 | 1350 | 1480 | ||||
| 320 | 1200 | 900 | 2150 | 800 | 2000 | 1450 | 1580 | ||||||
| 400 | 1200 | 1000 | 2150 | 800 | 2000 | 1450 | 1680 | ||||||
| 260 | Postposition | 1200 | 700 | 2150 | Center opening | 700 | 2000 | 1500 | 1330 | ||||
| 320 | 1200 | 900 | 2150 | 700 | 2000 | 1500 | 1530 | ||||||
| 400 | 1200 | 1000 | 2150 | 700 | 2000 | 1500 | 1630 | ||||||
| Load | Speed | Knapsack rack Layout |
Cabin size | Door type | Door size | Hoist way size | Minimum floor spacing | ||||||
| CW | CD | CH | DW | DH | HW | HD | Min S | Min K | Min D | ||||
| （kg） | (m/s) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 260 | 0.4 | Side mounted | 800 | 1100 | 2150 | Side opening | 700 | 2000 | 1250 | 1380 | 150 | 2800 | 2400 |
| 320 | 900 | 1200 | 2150 | 750 | 2000 | 1350 | 1480 | ||||||
| 400 | 1000 | 1200 | 2150 | 800 | 2000 | 1450 | 1480 | ||||||
| 260 | Postposition | 1100 | 800 | 2150 | Four panels center opening | 700 | 2000 | 1350 | 1380 | ||||
| 320 | 1200 | 900 | 2150 | 800 | 2000 | 1450 | 1480 | ||||||
| 400 | 1200 | 1000 | 2150 | 800 | 2000 | 1450 | 1580 | ||||||
| 260 | Postposition | 1200 | 700 | 2150 | Center opening | 700 | 2000 | 1500 | 1230 | ||||
| 320 | 1200 | 900 | 2150 | 700 | 2000 | 1500 | 1430 | ||||||
| 400 | 1200 | 1000 | 2150 | 700 | 2000 | 1500 | 1530 | ||||||

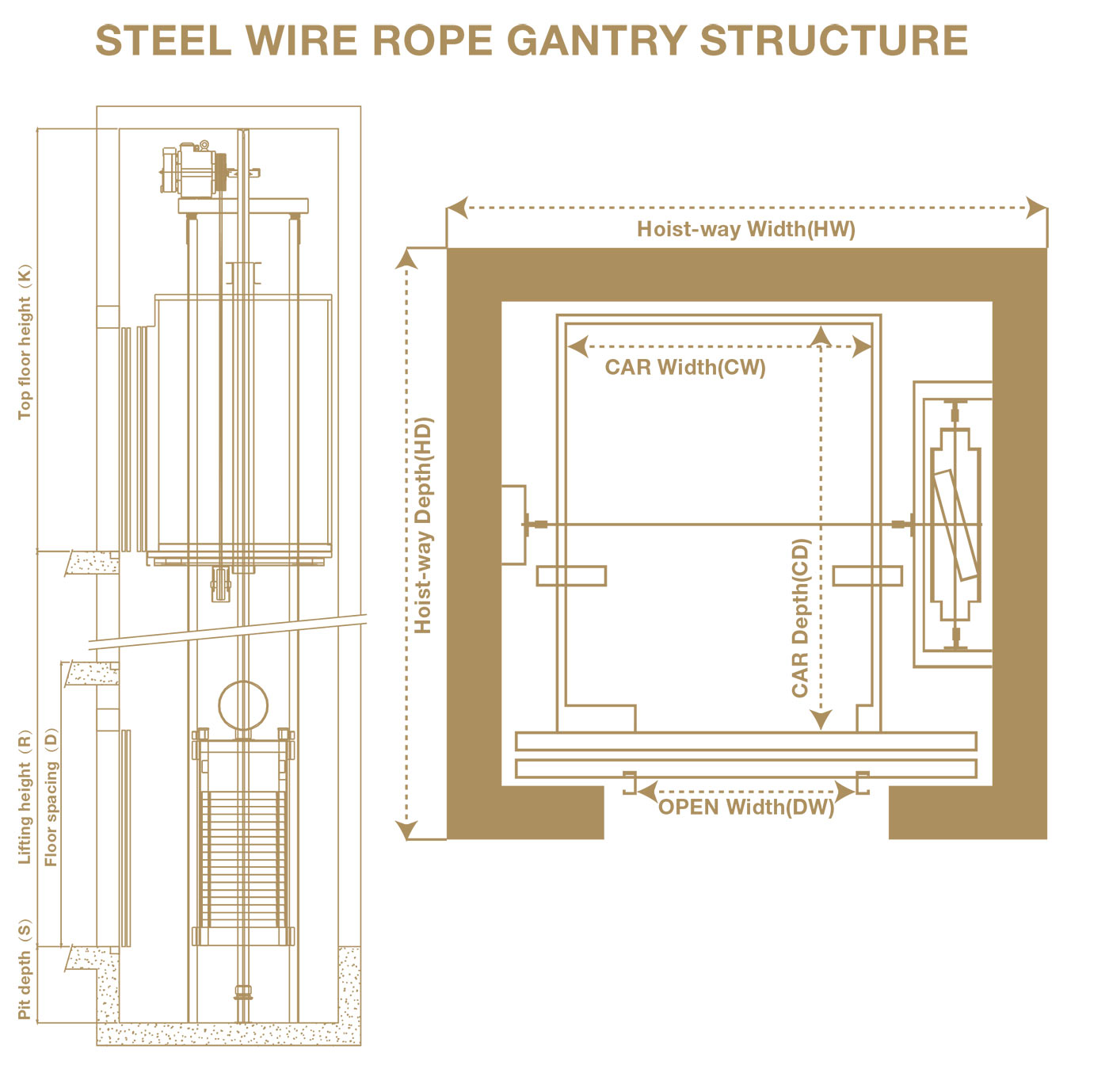

| Load | Speed | host Layout |
Cabin size | Door type | Door size | Hoist way size | Minimum floor spacing | ||||||
| CW | CD | CH | DW | DH | HW | HD | Min S | Min K | Min D | ||||
| （kg） | (m/s) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 260 | 0.3 | Lower set | 800 | 1100 | 2150 | Manual door | 700 | 2000 | 1200 | 1210 | 150 | 2800 | 2400 |
| 320 | 900 | 1200 | 2150 | 800 | 2000 | 1300 | 1310 | ||||||
| 400 | 1000 | 1200 | 2150 | 800 | 2000 | 1400 | 1310 | ||||||
| 260 | Upper set | 800 | 1100 | 2150 | 700 | 2000 | 1200 | 1210 | 3400 | ||||
| 320 | 900 | 1200 | 2150 | 800 | 2000 | 1300 | 1310 | ||||||
| 400 | 1000 | 1200 | 2150 | 800 | 2000 | 1400 | 1310 | ||||||
| Counterweight position | Hoist way size | Cabin size | Door size | Minimum lift floor height | Minimum floor spacing | |||
| HW | HD | CW | CD | DW1 | DW2 | Min H | Min D | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| Postposition | 1232 | 1258 | 1200 | 950 | 800 | 800 | 2400 | 2600 |
| 1158 | 850 | 700 | ||||||
| 1058 | 750 | |||||||
| 1132 | 1258 | 1100 | 950 | 800 | 800 | |||
| 1158 | 850 | 700 | ||||||
| 1058 | 750 | |||||||
| 1032 | 1258 | 1000 | 950 | 800 | 800 | |||
| 1158 | 850 | 700 | ||||||
| 1058 | 750 | |||||||
| 932 | 1258 | 900 | 950 | 700 | 800 | |||
| 1158 | 850 | 700 | ||||||
| 1058 | 750 | |||||||
| Side mounted | 1258 | 1232 | 950 | 1200 | 800 | 800 | ||
| 1132 | 1100 | 800 | ||||||
| 1032 | 1000 | 800 | ||||||
| 932 | 900 | 700 | ||||||
| 1158 | 1232 | 850 | 1200 | 700 | 800 | |||
| 1132 | 1100 | 800 | ||||||
| 1032 | 1000 | 800 | ||||||
| 932 | 900 | 700 | ||||||
