Home Elevator

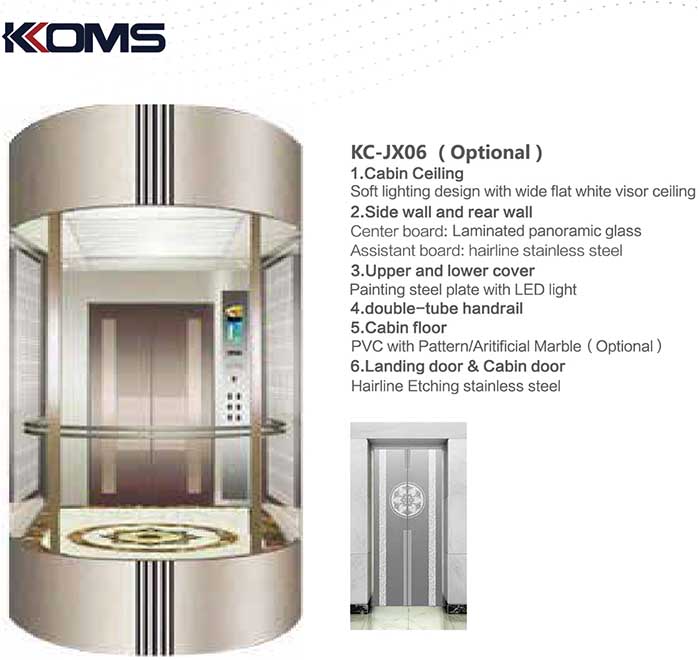

KC-JX06(Optional)
1. Cabin Ceiling
Soft lighting design with wide flat white visor ceiling
2. Sidewall and rear wall
Centerboard: Laminated panoramic glass
Assistant board: Hairline stainless steel
3. Upper and lower cover
Painting steel plate with LED light
4. Handrail
Double tube handrail
5. Cabin Floor
PVC floor/Artificial Marble(Optional)
6.Landing door & Cabin door
Hairline Etching stainless steel
This product adopts advanced technology and comprehensive design. The soft light lighting design of wide flat roof white light shield is used on the car roof; the center plate of sidewall and back wall is made of laminated sightseeing glass, and the auxiliary plate is made of hairline stainless steel; the upper and lower covers are made of steel plate baking paint and light belt; the handrail is made of double tube handrail; the car bottom is divided into two materials, one is PVC floor, the other is marble mosaic; the car door and landing door are made of hairline etched stainless steel.
The soft light gives people a kind of comfort, transparent glass gives people a kind of comfort. The use of overall color and the handling of details can be said to be seamless.

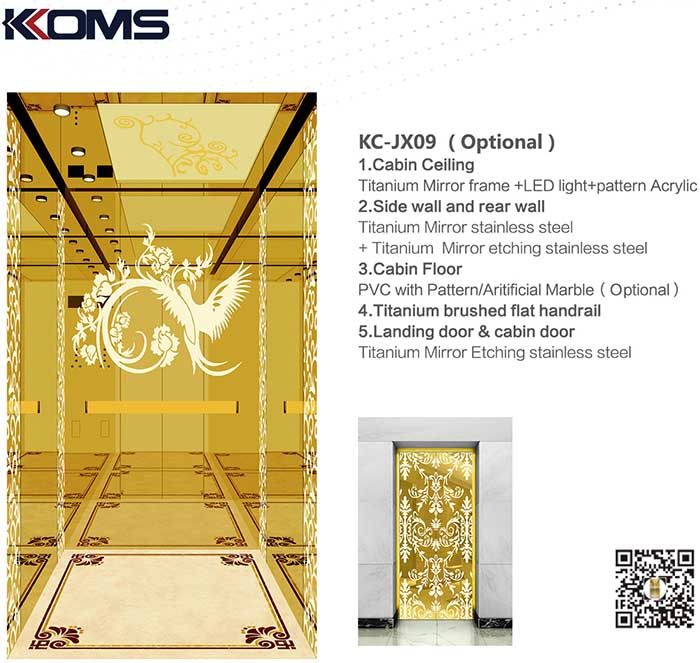

KC-JX09(Optional)
1. Cabin Ceiling
Titanium mirror frame+LED light+pattern acrylic
2. Sidewall and Rear wall
Titanium mirror stainless steel+Titanium mirror etching stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Handrail
Titanium brushed flat handrail
5. Landing door & cabin door
Titanium mirror etching stainless steel
The car roof of this product is designed with titanium mirror frame, color drawing board and LED lamp combination; the material of sidewall and rear wall is titanium mirror stainless steel and titanium mirror etched stainless steel dual-material; PVC floor and marble mosaic are used for selection on the car bottom; the handrail is titanium hairline flat handrail; the car door and landing door are titanium mirror etched stainless steel material.
It makes people look like a lot of space is bright, and a reasonable layout will free up a lot of space, giving people a relaxed feeling. The design of hairline flat armrest makes people grip more firmly and safely. Generally speaking, it is more comfortable and safer.

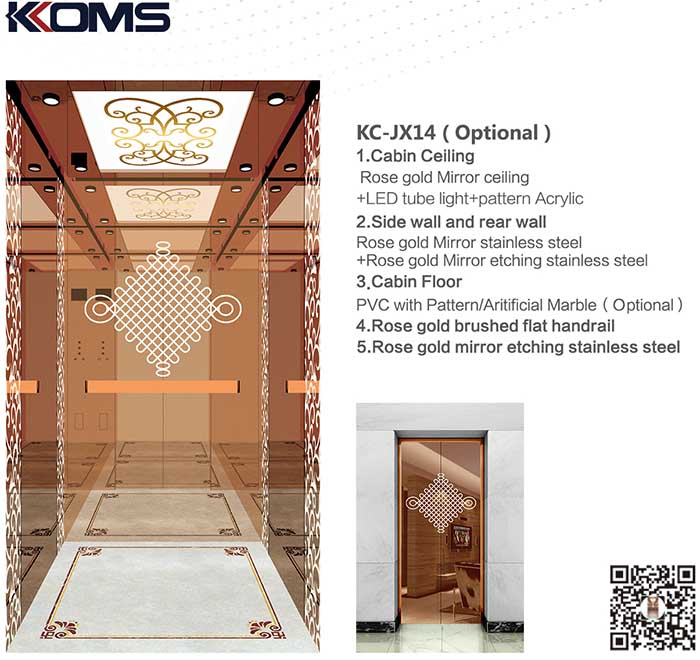

KC-JX14(Optional)
1. Cabin Ceiling
Rose gold mirror ceiling+LED tube light+pattern acrylic
2. Sidewall and Rear wall
Rose gold mirror stainless steel+Rose gold mirror etching stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Handrail
Rose gold brushed flat handrail
5. Landing door & cabin door
Rose gold mirror etching stainless steel
The car roof of this product adopts the combination of rose gold mirror, color painting board and LED lamp; the combination of rose gold mirror stainless steel and rose gold mirror etched stainless steel is used on the side wall and back wall; the car bottom has PVC floor and marble mosaic for selection; the handrail adopts rose gold hairline flat handrail; the car door and landing door materials adopt rose gold mirror etched stainless steel.
Rose gold is noble and bright in color. All materials are made of stainless steel, which is smooth, wear-resistant and more applicable. As a whole, it seems to bring people visual enjoyment, and it is safe and reliable.

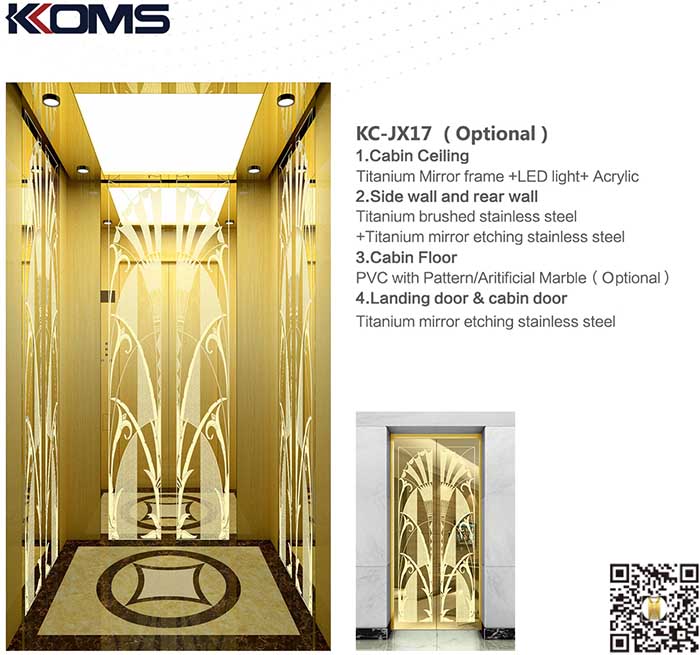

KC-JX17(Optional)
1. Cabin Ceiling
Titanium Mirror frame+LED light+Acrylic
2. Sidewall and rear wall
Titanium brushed stainless steel+Titanium mirror etching stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Landing door&cabin door
Titanium mirror etching stainless steel
The car roof of this product adopts the combination of titanium mirror frame, white transparent plate and LED lamp; the sidewall and rear wall are made of titanium hairline stainless steel and titanium mirror etched stainless steel; the car bottom has PVC floor and marble mosaic for selection; the car door and landing door are made of titanium mirror etched stainless steel.
The whole is beautiful, simple and luxurious, with good lighting effects and beautiful feeling. Moreover, from the inside to the outside, from the top to the bottom, all show exquisite elegance.

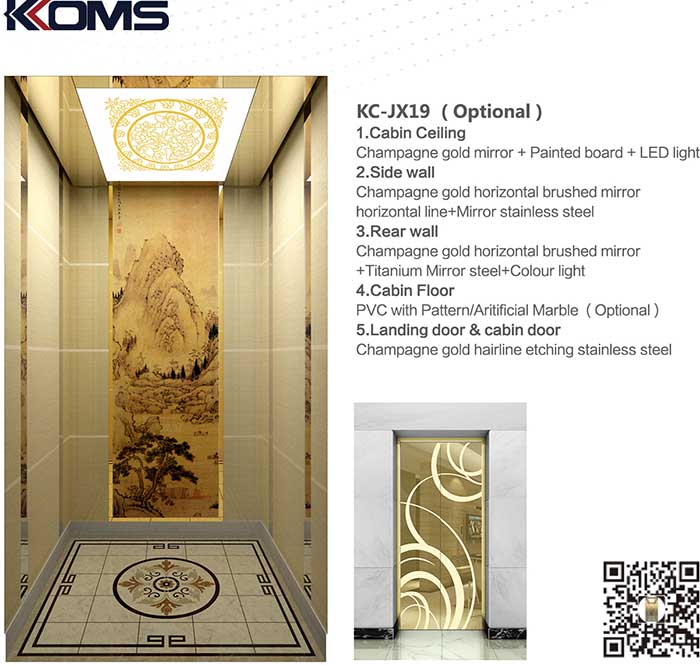

KC-JX19(Optional)
1. Cabin Ceiling
Champagne gold mirror+Painted board+LED light
2. Sidewall
Champagne gold horizontal brushed mirror horizontal line+mirror stainless steel
3. Rear wall
Champagne gold horizontal brushed mirror+Titanium mirror steel+Colour light
4. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
5. Landing door & cabin door
Champagne gold hairline etching stainless steel
The car roof of this product adopts the combination of champagne gold mirror, color painting board and LED lamp; the side wall adopts the combination of champagne gold horizontal hair line mirror horizontal line and mirror stainless steel; the back wall adopts the combination of champagne gold horizontal hair line mirror horizontal line, titanium gold mirror stainless steel and color-glazed glass; the car bottom has PVC floor and marble parquet to choose from; the car door and layer adopt champagne gold hair line etching without rust Steel material.
The scattered lines, dazzling mirrors and even comfortable car bottom all show the humanized design concept. It gives people a sense of comfort and home.

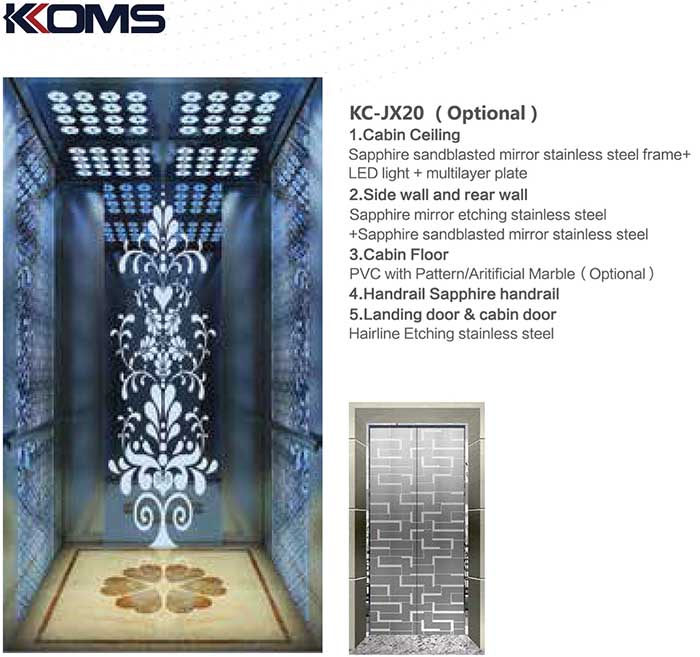

KC-JX20(Optional)
1. Cabin Ceiling
Sapphire sandblasted mirror stainless steel frame+LED light+multilayer plate
2. Sidewall and Rear wall
Sapphire mirror etching stainless steel+Sapphire sandblasted mirror stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Handrail
Sapphire handrail
5. Landing door & cabin door
Hairline etching stainless steel
The car roof of this product adopts the combination design of sapphire blue mirror sandblasting frame, multi-layer transparent plate and LED lamp; the sidewall and rear wall adopt sapphire blue mirror etching and sapphire blue mirror sandblasting stainless steel combination; the car bottom has two options of PVC floor and marble mosaic; the handrail adopts sapphire blue hairline handrail; the car door and landing door adopt hairline etching stainless steel material.
On the whole, the light transmittance is good, the layout of the car is reasonable, and the space is large, which brings people a better sense of vision and security. And the overall color of sapphire blue, is the icing on the cake, with a strong artistic atmosphere.
KC-JX21(Optional)
1. Cabin Ceiling
Rose gold Mirror frame+LED light+pattern Acrylic
2. Sidewall and rear wall
Rose gold Mirror stainless steel+Rose gold Mirror etching stainless steel+Rose gold Mirror Sandblasted steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Landing door&cabin door
Rose gold mirror etching stainless steel
The car roof of this product adopts the combination of rose gold mirror, color painting board and LED lamp; the sidewall and back wall adopt the combination of rose gold mirror stainless steel, rose gold mirror etching stainless steel and rose gold mirror sandblasting stainless steel; the car bottom has PVC floor and marble parquet to choose from; the car door and landing door adopt rose gold mirror etching stainless steel.
The overall sense of integration is very good. The noble rose gold, the fresh color painting board and the bright combination of LED lights give people the feeling of lingering and forgetting to return, and they are more contemporary.

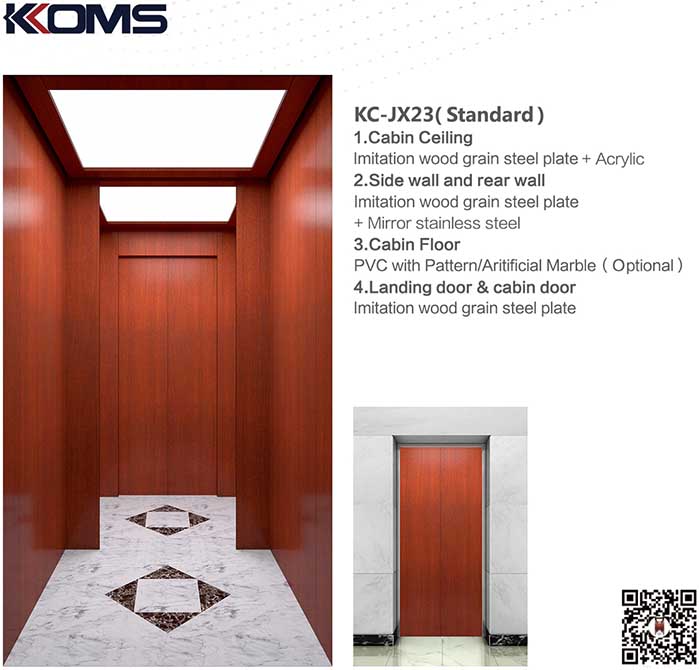

KC-JX23(Standard)
1. Cabin Ceiling
Artificial wood grain steel plate+Acrylic
2. Sidewall and rear wall
artificial wood grain steel plate+Mirror stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Landing door & cabin door
artificial wood grain steel plate
The car roof of this product adopts the combination of wood grain color steel plate and acrylic; the sidewall and rear wall adopt the combination of wood grain color steel plate and mirror stainless steel; the car bottom has PVC floor and marble mosaic for selection; the car door and layer adopt the material of wood grain color steel plate.
The whole is more natural, creating a fresh and relaxed situation. Unique design, colorful materials, all reflect the breath of art.

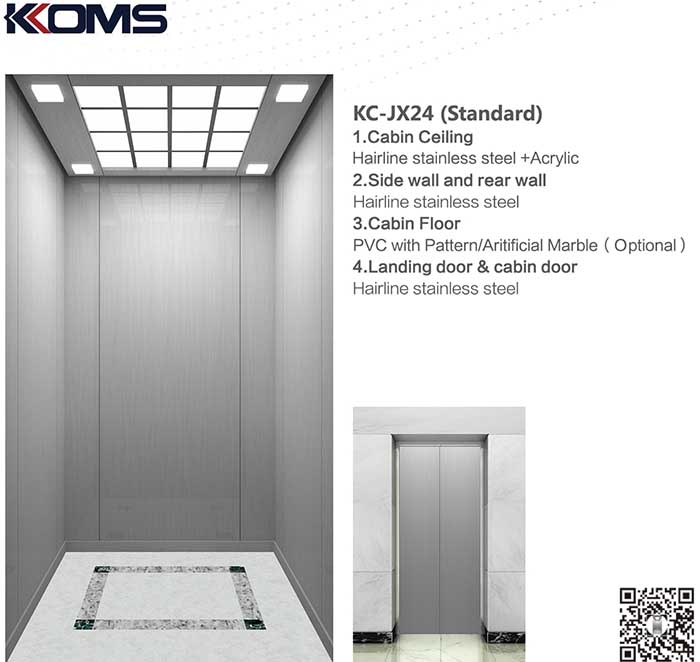

KC-JX24(Standard)
1. Cabin Ceiling
Hairline stainless steel+Acrylic
2. Sidewall and rear wall
Hairline stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Landing door&cabin door
Hairline stainless steel
The car roof of this product adopts the combination of hairline stainless steel and acrylic; the rear wall of sidewall adopts hairline stainless steel; the car bottom has PVC floor and marble for selection; the car door and landing door adopt hairline stainless steel.
It is simple but not simple. It looks more spacious, more practical and safer as a whole. Made of stainless steel, it is more wear-resistant and durable.

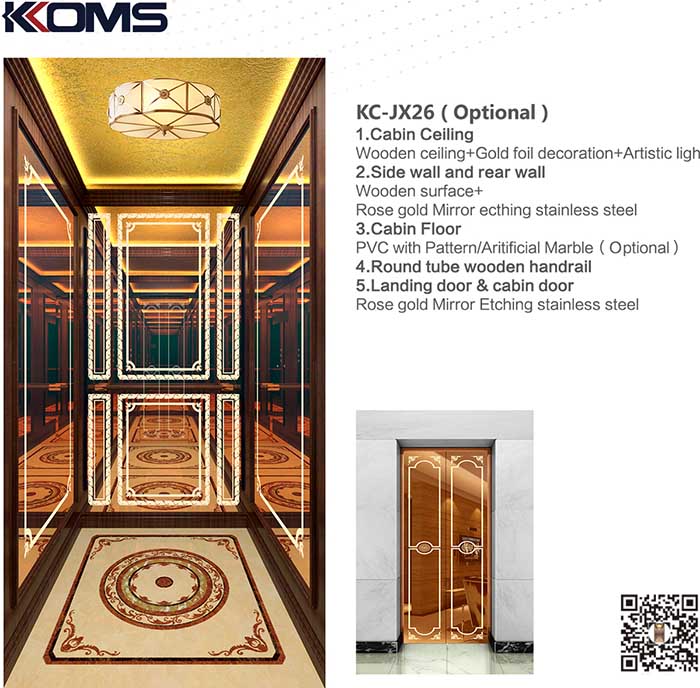

KC-JX26(Optional)
1. Cabin Ceiling
Wooden ceiling+Gold foil decoration+Artistic light
2. Sidewall and rear wall
Wooden surface+Rose gold Mirror etching stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Handrail
Round tube wooden
5. Landing door&cabin door
Rose gold Mirror Etching stainless steel
The car roof of this product adopts the combination design of wooden ceiling, gold foil decoration, and art lamp; the sidewall and rear wall adopt the combination of wood surface and rose gold mirror etched stainless steel; the car bottom has PVC floor and marble mosaic to choose from; the handrail adopts wooden round pipe handrail; the car door and layer adopt rose gold mirror etched stainless steel.
The whole car has a good texture and rich artistic flavor. From the top to the bottom, from the outside to the inside, every detail is done to the extreme, giving people a strong enjoyment of beauty.

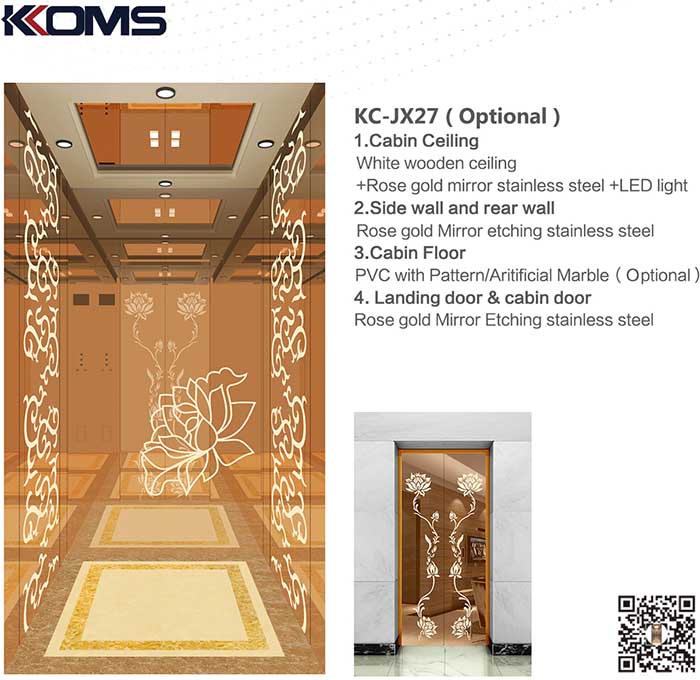

KC-JX27(Optional)
1. Cabin Ceiling
White wooden ceiling+Rose gold mirror stainless steel+LED light
2. Sidewall and rear wall
Rose gold mirror etching stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Landing door & cabin door
Rose gold mirror etching stainless steel
The car roof of this product adopts the combination of white wooden ceiling, rose gold mirror stainless steel and LED lamp; the sidewall and rear wall are made of rose gold mirror stainless steel; the car bottom has PVC floor and marble mosaic for selection; the car door and landing door are made of rose gold mirror etched stainless steel;
The whole is relatively simple, but the reasonable layout and high-quality materials improve the beauty and safety of the car. When passengers step in, they feel at home.

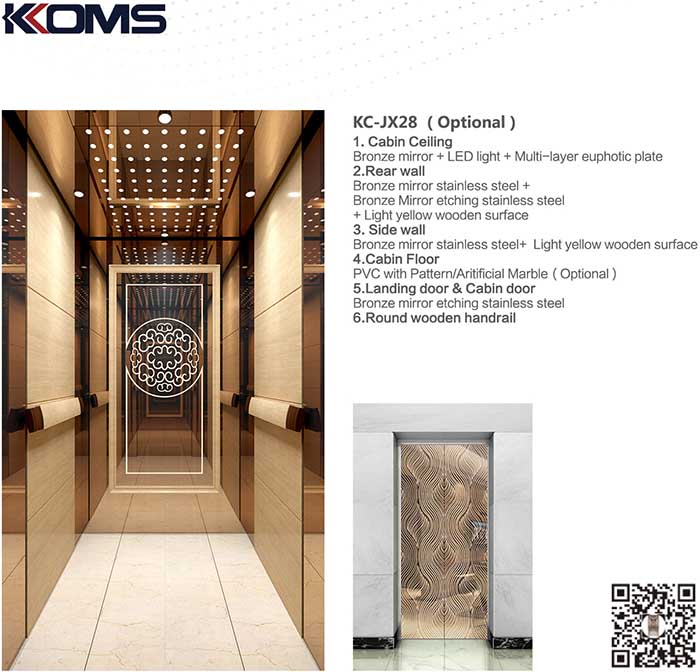

KC-JX28(Optional)
1. Cabin Ceiling
Bronze mirror+LED light+Multi-layer euphotic plate
2. Rear wall
Bronze mirror stainless steel+Bronze mirror etching stainless steel+Light yellow wooden surface
3. Sidewall
Bronze mirror stainless steel+Light yellow wooden surface
4. Cabin Floor
PVC with pattern/Artificial Marble(Optional)
5. Handrail
Round wooden handrail
6. Landing door&Cabin door
Bronze mirror etching stainless steel
The car roof of this product adopts the combination of antique copper mirror, multi-layer transparent board and LED lamp; the side wall adopts the combination of antique copper mirror stainless steel and beige wood veneer; the back wall adopts the combination of antique copper mirror stainless steel, antique copper mirror etching and beige wood veneer; the floor has PVC floor and marble parquet to choose from; the handrail adopts wood elliptical handrail; the car door And layer doors are made of bronze mirror etched stainless steel.
The whole is more classical, elegant and noble, and also shows the modern beauty. This combination of tradition and modern beauty makes the car more artistic, more simple and beautiful.
KC-JX29(Optional)
1. Cabin Ceiling
Mirror stainless steel+White eqphotic+LED light
2. Sidewall and rear wall
Mirror stainless steel+Mirror sandblasted stainless steel+paint glass
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Handrail
Mirror sandblasted stainless steel handrail
5. Landing door&cabin door
Mirror etching stainless steel
The car roof of this product adopts the combination of mirror stainless steel frame, white transparent plate and LED lamp; the sidewall and rear wall adopt the combination of mirror stainless steel, mirror sandblasting stainless steel and baking varnish glass; the car bottom has PVC floor and marble mosaic for selection; the handrail adopts mirror sandblasting handrail; the car door and landing door adopt mirror etching stainless steel material.
The overall layout is reasonable, simple and practical, giving people a very close feeling. The handrail is sandblasted with a mirror surface, and the hand feel will be better. Stainless steel material is more wear-resistant and durable.
KC-JX30(Optional)
1. Cabin Ceiling
Champaign gold mirror+LED light+white euphotic plate
2. Sidewall and rear wall
Champaign gold hairline etching stainless steel+Champaign gold etching stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Handrail
Champaign gold hairline square handrail
5. Landing door&cabin door
Champaign gold mirror etching stainless steel
The car roof of this product adopts the combination of champagne gold mirror, white transparent plate and LED lamp; the sidewall and rear wall adopt the combination of champagne gold mirror etched stainless steel and champagne golden hair etched stainless steel; the car bottom has PVC floor and marble parquet for selection; the handrail adopts champagne golden hair etched square handrail; the car door and landing door adopt champagne gold mirror etched stainless steel.
The overall layout is reasonable and low-key luxury has a connotation. In terms of safety and durability, we should do more in place to show humanistic care. It gives people a very stable mood and beautiful enjoyment.

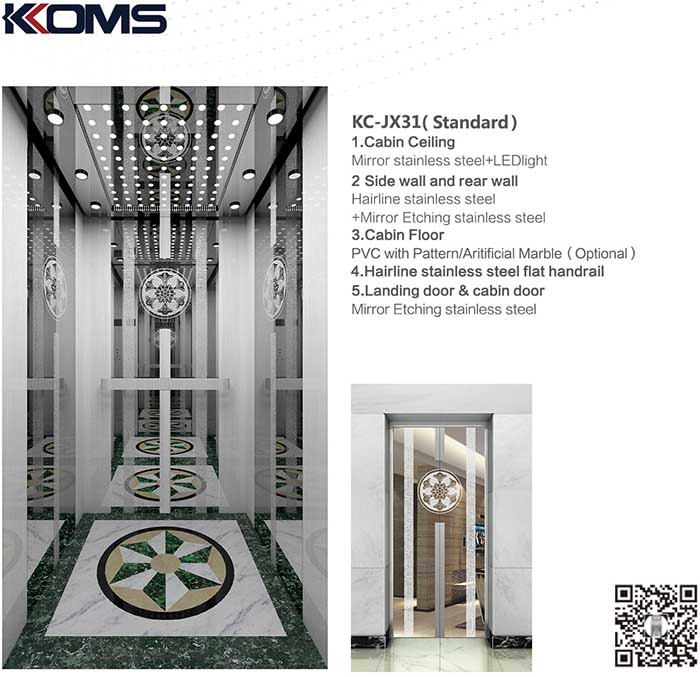

KC-JX31(Standard)
1. Cabin Ceiling
Mirror stainless steel+LED light
2. Sidewall and rear wall
Hairline stainless steel+Mirror Etching stainless steel
3. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
4. Handrail
stainless steel flat handrail
5. Landing door&cabin door
Mirror stainless steel
The car roof of this product adopts the combination of mirror stainless steel frame and LED lamp; the sidewall and rear wall adopt the combination of hairline stainless steel and mirror etched stainless steel; the car bottom has PVC floor and marble mosaic for selection; the handrail adopts hairline stainless steel flat handrail; the car door and landing door adopt mirror etched stainless steel material.
When you walk in, you will be overwhelmed by this unique design. Exquisite stripes, flashing lights, excellent texture, give people a beautiful feeling.

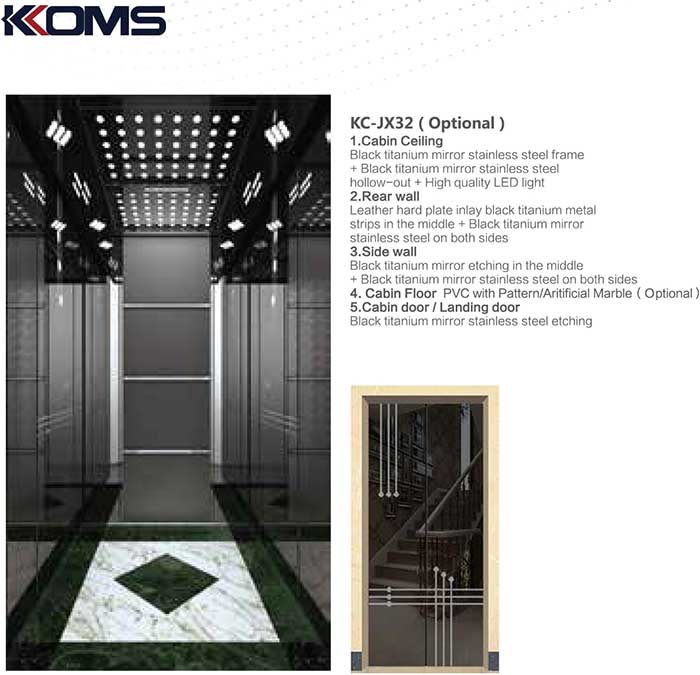

KC-JX32(Optional)
1. Cabin Ceiling
Black titanium mirror stainless steel frame+Black titanium mirror stainless steel hollow-out+Hight quality LED light
2. Rear wall
Leather hard plate inlay black titanium metal strips in the middle+Black titanium mirror stainless steel on both sides
3. Sidewall
Black titanium mirror etching in the middle+Black titanium mirror stainless steel on both sides
4. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
5. Landing door&cabin door
Black titanium mirror stainless steel etching
The car roof of this product adopts the combination of Black Titanium mirror stainless steel frame, black titanium mirror stainless steel hollow out and high-quality LED lamp; the sidewall adopts the Middle Black Titanium mirror etching and both sides black titanium mirror stainless steel; the back wall adopts the middle leather hard plate inlaid with black titanium metal strip and both sides black titanium mirror stainless steel; the front wall adopts Black Titanium mirror stainless steel; the floor has PVC floor and marble mosaic for selection The car door and landing door are made of Black Titanium mirror etched stainless steel.
The overall black background gives people a sense of atmosphere, elegance, and composure, supplemented by leather plate, which is more noble and elegant and has the flavor of the times. Reasonable layout, correct collocation, low profile, and luxury.

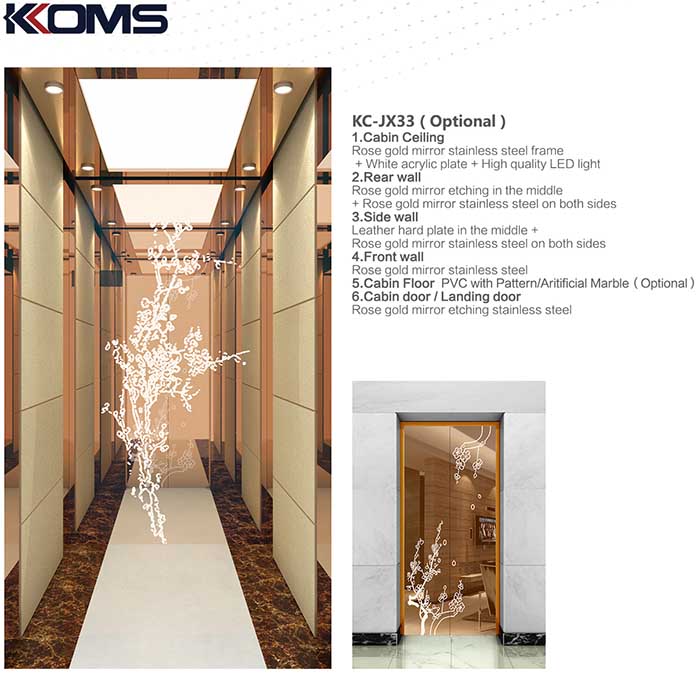

KC-JX33(Optional)
1. Cabin Ceiling
Rose gold mirror stainless steel frame+White acrylic plate+High quality led light
2. Rear wall
Rose gold mirror etching in the middle+Rose gold mirror stainless steel on both sides
3. Sidewall
Leather hard plate in the middle+Rose gold mirror stainless steel on both sides
4. Front wall
Rose gold mirror stainless steel
5. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
6. Landing door/cabin door
Rose gold mirror etching stainless steel
The car roof of this product adopts the combination of rose gold mirror stainless steel frame, white acrylic plate, and high-quality LED lamp; the back wall adopts the combination of middle rose gold mirror etching and two sides rose gold mirror stainless steel; the sidewall adopts the combination of middle leather hard plate and two sides rose gold mirror stainless steel; the front wall adopts rose gold mirror stainless steel; the floor has PVC floor and marble mosaic for selection Car doors and landing doors are made of rose gold mirror etched stainless steel;
As a whole, it gives a sense of nobility, atmosphere, and steadiness. Rose gold is dazzling and elegant, but it is noble and elegant. The sidewall is more beautiful with the contrast of leather and hardboard.

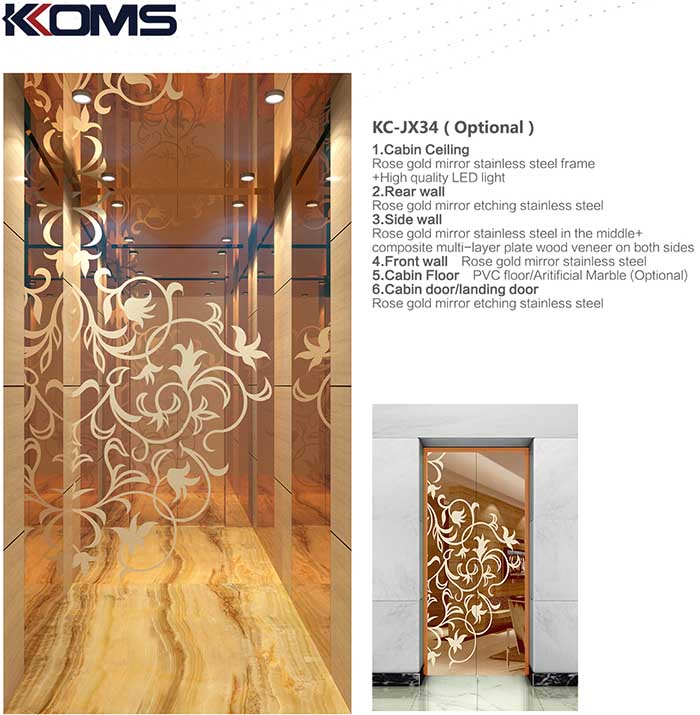

KC-JX34(Optional)
1. Cabin Ceiling
Rose gold mirror stainless steel frame
2. Rear wall
Rose gold mirror etching stainless steel
3. Sidewall
Rose gold mirror stainless steel in the middle+composite multi-layer plate wood veneer on both sides
4. Front wall
Rose gold mirror stainless steel
5. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
6. Landing door&cabin door
Rose gold mirror etching stainless steel
The car roof of this product adopts the combination of rose gold mirror stainless steel frame and high-quality LED lamp; the rear wall adopts rose gold mirror etching; the sidewall adopts the middle rose gold mirror stainless steel, and the two sides are composite multi-layer wood veneer; the front wall adopts rose gold mirror; the floor has PVC floor and marble parquet to choose from; the car door and the landing door adopt rose gold mirror etching stainless steel.
The overall combination and layout are natural. The noble temperament of rose gold and the natural wood veneer give people a beautiful feeling and make people linger.

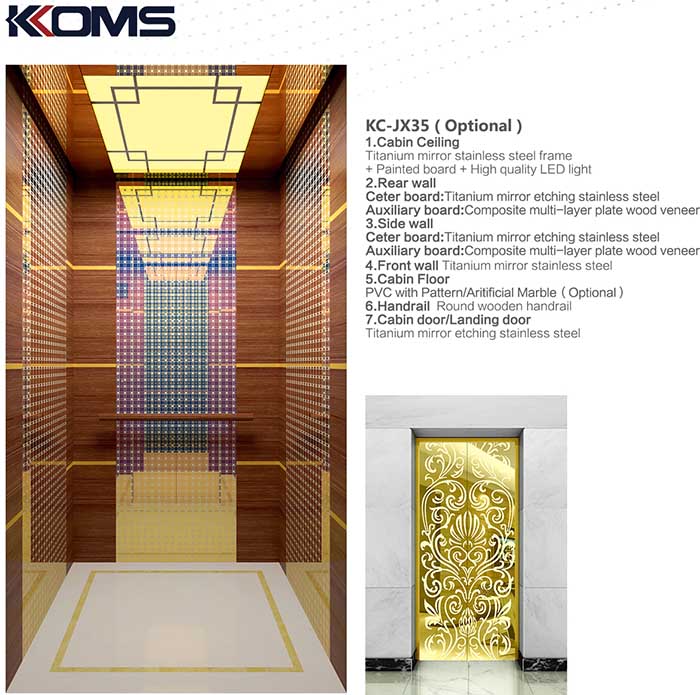

KC-JX35(Optional)
1. Cabin Ceiling
TItanium mirror stainless steel frame+Painted board+High quality LED light
2. Rear wall
Centerboard: TItanium mirror etching stainless steel
Auxiliary board: Composite multi-layer plate wood veneer
3. Sidewall
Black titanium mirror etching in the middle+Black titanium mirror stainless steel on both sides
4. Cabin Floor
PVC with Pattern/Artificial Marble(Optional)
5. Landing door&cabin door
Black titanium mirror stainless steel etching
The car roof of this product adopts the combination of titanium mirror stainless steel frame, color painting board, and high-quality LED lamp; the rear wall adopts the combination of central plate titanium mirror etching stainless steel and auxiliary plate retro multilayer wood veneer; the sidewall adopts the combination of central plate titanium mirror etching stainless steel and auxiliary plate composite multilayer wood veneer; the front wall adopts titanium mirror stainless steel; the floor has PVC floor and Dali Stone mosaic is available; the handrail is round wood handrail; the car door and landing door are made of titanium mirror etched stainless steel.
The dazzling appearance gives people more space feeling, and the simple and fresh material gives people a sense of relief. The whole is low-key without losing luxury, simple but not simple.

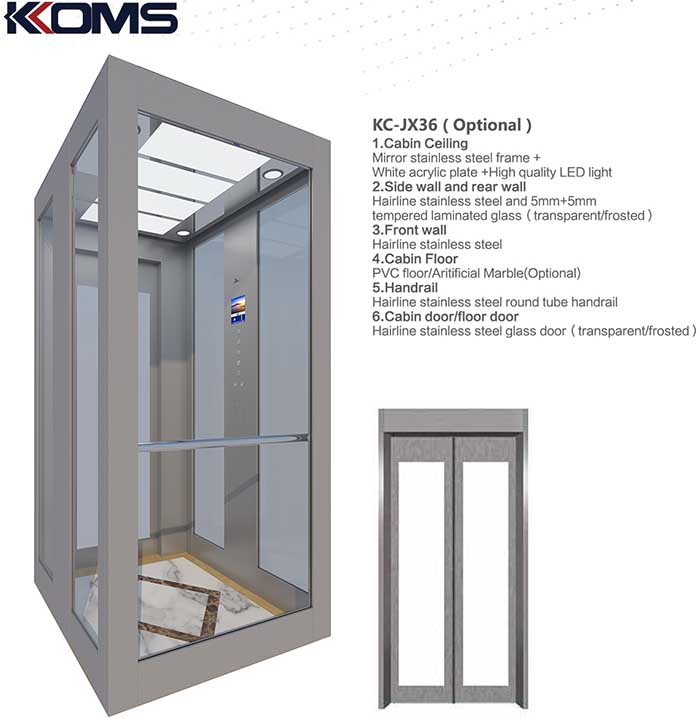

KC-JX36(Optional)
1. Cabin Ceiling
Mirror stainless steel frame+White acrylic plate+High quality LED light
2. Sidewall and rear wall
Hairline stainless steel and 5mm+5mm
tempered laminated glass(transparent/frosted)
3. Font wall
Hairline stainless steel
4. Cabin Floor
PVC floor/Artificial Marble(Optional)
5. Handrail
Hairline stainless steel round tube handrail
6.Cabin door/floor door
Hairline stainless steel glass door(transparent/frosted)
The car roof of the product adopts the combination of mirror stainless steel frame, white acrylic plate and high-quality LED lamp; the back wall and side wall adopt the combination of hairline stainless steel and "5 + 5" toughened laminated glass; the front wall adopts hairline stainless steel; the floor has PVC floor and marble parquet to choose from; the armrest adopts hairline stainless steel round pipe; the car door and landing door adopt hairline stainless steel glass door.
The overall layout is relatively simple and practical. It has been further improved in safety, durability and practicability, giving people a very natural feeling.
The high-quality material and proprietary technology make sure that the KOMS home lift has high quality and more safety. The perfect control system makes KOMS home lift more comfortable, stable the new COP&LOP with LED touch screen creates a smart and comfortable experience. The high-quality supply chain and advanced production technology improve the quality of life. KOMS elevators and ARD function and SOS one-key dial function to meet with your special living requirement under the manufacturing quality. KOMS dedicates every villa elevator perfectly matching your decoration style. Based on the one station customized service on cabin decoration, shaft construction, function configuration, quiet, save power and protect the environment, you will have a happy and comfortable experience.KOMS will bring you the elegant and happy enjoyment we are belive that KOMS will accompany you forever with our keeping improve.
The feature of superiority Add value infinitely. After installing villa elevator, your villa can give you a different taste, value is more than before! Design professionally: We developed villa elevators which have a different style, different conception and different price on the condition that the talents and scientific research of Shanghai Jiaotong University. We are professional, we are confident! Customized: If you are busy to build your new house or install an elevator in the existing villa, we can supply a perfect professional design according to the situation on-site and your special requirement! To make an elevator that can match your outstanding taste and show your personality! Diverse match: the match of wood like veneer, stainless steel glass cabin and different colors e, bodies a new classical and European style! Combine the advantage of Chinese style and west style to make a modern, warm, sweet, safe and perfect villa elevator. Energy-saving, environmentally, and space-saving: “KOMS” is a type of elevator that has a high-rank new villa elevator. It uses VVVF(frequency conversion, frequency adjustment, and speed adjustment) main driver, no noise and comfortable!
Product Recommendation

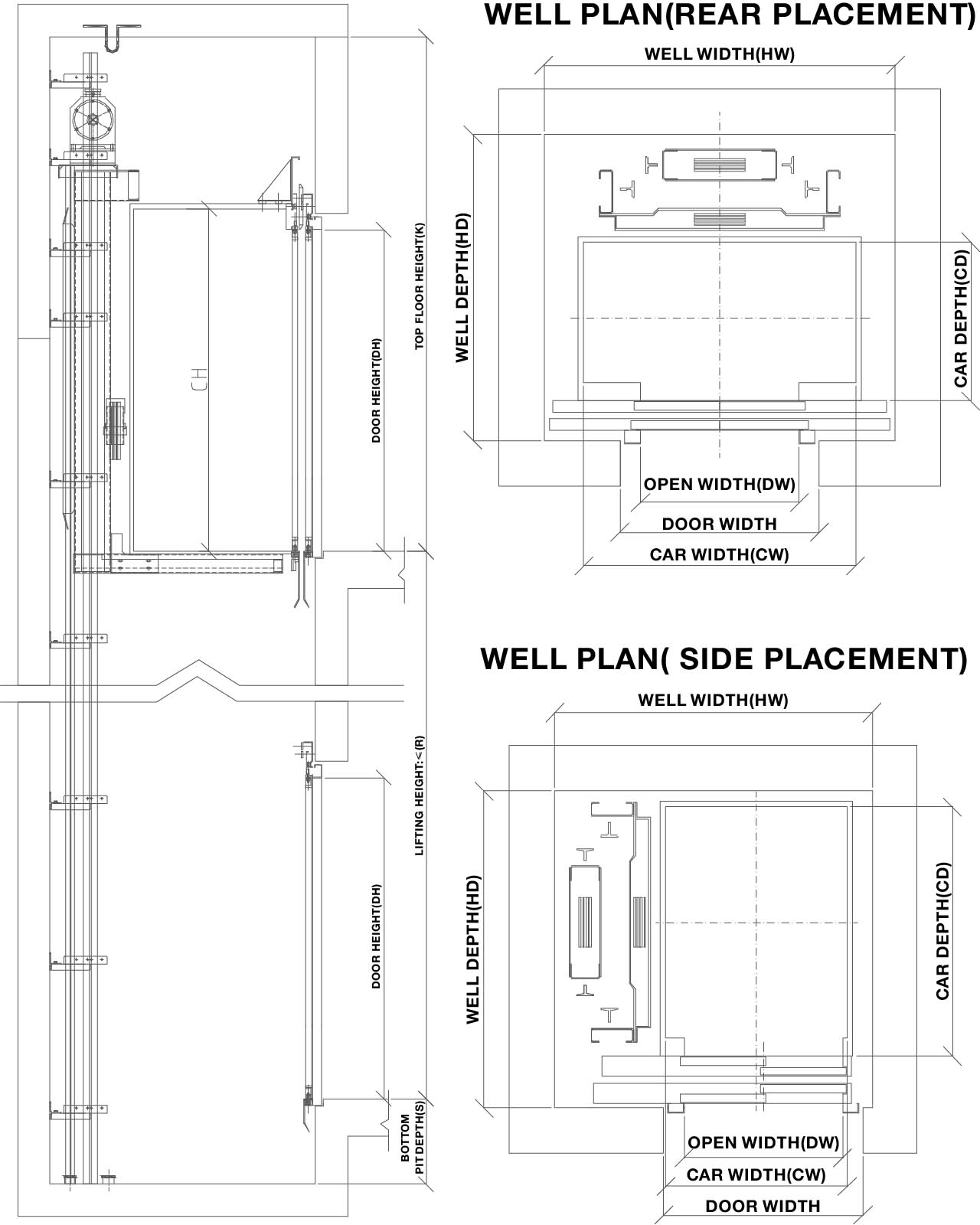

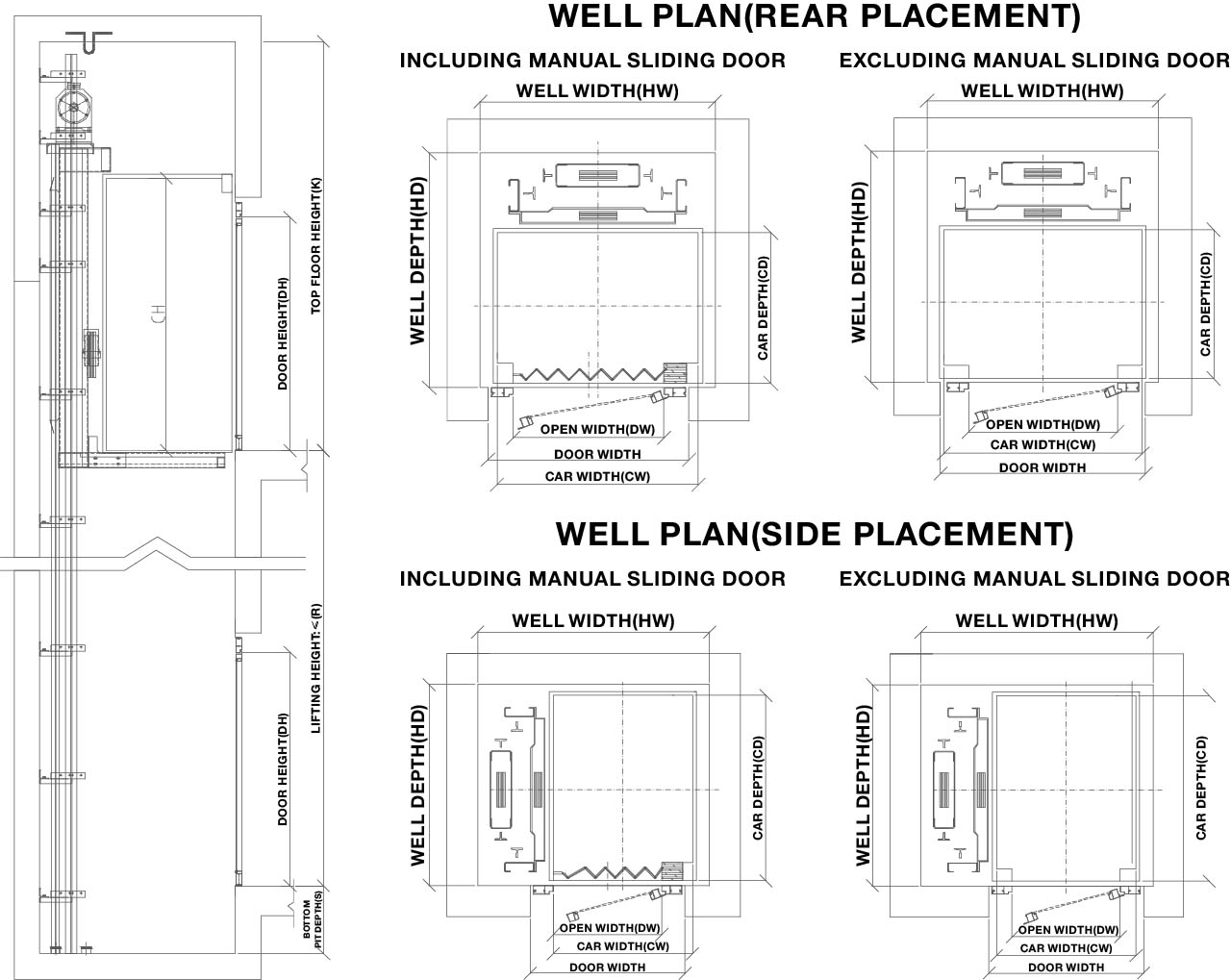

| Standard gantry civil drawing parameters | |||||||||||||||
| load （kg） |
speed (m/s) |
cabin size | Door Type | Door opening | Hoist-way Size | Max R (mm) |
Max D (mm) |
P (kw) |
DBGRB (mm) |
||||||
| CW (mm) |
CD (mm) |
CH (mm) |
DW (mm) |
DH (mm) |
HW (mm) |
HD (mm) |
Min S (mm) |
Min K (mm) |
|||||||
| 260 | 0.4 | 800 | 1100 | 2150 | Side Opening | 700 | 2000 | 1400 | 1450 | 500 | 2800 | 1200 | 2400 | 0.9 | 1500 |
| 320 | 900 | 1200 | 800 | 1500 | 1550 | 1.1 | |||||||||
| 400 | 1000 | 1200 | 800 | 1600 | |||||||||||
| 320 | 900 | 1200 | Center Opening Four Panels door | 700 | 1500 | 1500 | |||||||||
| 400 | 1000 | 1200 | 800 | 1600 | |||||||||||
| 320 | 900 | 1200 | Center Opening door | 650 | 1500 | 1450 | |||||||||
| 400 | 1000 | 1200 | 700 | 1600 | |||||||||||
| 630 | 0.5 | 1200 | 1300 | Side Opening | 800 | 1900 | 1650 | 600 | 3000 | 2.1 | |||||
| Center Opening Four Panels door | 1600 | ||||||||||||||
| Center Opening door | 1550 | ||||||||||||||
| Remark:CW:cabin width, CH:cabin Height, DW:door width, DH:door hight, HW:hoist-way width, HD:hoist-way Depth, S:pit depth, K:overhead height, R:traveling height, D:pitch of floor | |||||||||||||||
| Parameters of standard knapsack frame civil drawing | ||||||||||||||||
| load （kg） |
speed (m/s) |
Arrangement mode | cabin size | Door Type | Door opening | Hoist-way Size | Max R (mm) |
Max D (mm) |
P (kw) |
DBGRB (mm) |
||||||
| CW (mm) |
CD (mm) |
CH (mm) |
DW (mm) |
DH (mm) |
HW (mm) |
HD (mm) |
Min S (mm) |
Min K (mm) |
||||||||
| 260 | 0.4 | Postposition | 1200 | 700 | 2150 | Center Opening door | 700 | 2000 | 1550 | 13550 | 300 | 2800 | 1200 | 2400 | 0.9 | 1500 |
| Lateral position | 800 | 1100 | Automatic side door opening | 1400 | 1400 | |||||||||||
| 320 | Postposition | 1200 | 900 | Center Opening door | 1550 | 1550 | 1.1 | |||||||||
| Lateral position | 900 | 1200 | Automatic side door opening | 800 | 1500 | 1500 | ||||||||||
| 400 | Postposition | 1200 | 1000 | Center Opening door | 700 | 1550 | 1650 | |||||||||
| Lateral position | 1000 | 1200 | Automatic side door opening | 800 | 1600 | 1500 | ||||||||||
| Remark:CW:cabin width, CH:cabin Height, DW:door width, DH:door hight, HW:hoist-way width, HD:hoist-way Depth, S:pit depth, K:overhead height, R:traveling height, D:pitch of floor | ||||||||||||||||
| Parameters of backpack frame villa elevator(manual door) | ||||||||||||||||
| load （kg） |
speed (m/s) |
CWT Position |
cabin size | Opening Type | Door opening | Hoist-way Size | Max R (mm) |
Max D (mm) |
P (kw) |
DBGRB (mm) |
||||||
| CW (mm) |
CD (mm) |
CH (mm) |
DW (mm) |
DH (mm) |
HW (mm) |
HD (mm) |
Min S (mm) |
Min K (mm) |
||||||||
| 260 | 0.3 | REAR | 1100 | 800 | 2150 | Excluding manual car door | 800 | 2000 | 1300 | 1300 | 300 | 2800 | 12000 | 2400 | 0.9 | 1500 |
| Including manual car door | ||||||||||||||||
| SIDE | 800 | 1100 | Excluding manual car door | 700 | 1400 | 1200 | ||||||||||
| Including manual car door | 650 | |||||||||||||||
| 320 | REAR | 1200 | 900 | Excluding manual car door | 800 | 1400 | 1.1 | |||||||||
| Including manual car door | 900 | |||||||||||||||
| SIDE | 900 | 1200 | Excluding manual car door | 800 | 1500 | 1300 | ||||||||||
| Including manual car door | 700 | |||||||||||||||
| 400 | REAR | 1200 | 1000 | Excluding manual car door | 800 | 1550 | 1650 | |||||||||
| Including manual car door | 900 | |||||||||||||||
| SIDE | 1000 | 1200 | Excluding manual car door | 800 | 1600 | 1300 | ||||||||||
| Including manual car door | 800 | |||||||||||||||
| Remark:CW:cabin width, CH:cabin Height, DW:door width, DH:door hight, HW:hoist-way width, HD:hoist-way Depth, S:pit depth, K:overhead height, R:traveling height, D:pitch of floor | ||||||||||||||||
